Ledger Sync App

by Modern Treasury

Ledger Sync App is an open source application that allows you to easily sync to any supported accounting software. This repository is a Ruby on Rails application you can spin up and run on your own servers. Think of it as the "front end," while the Ledger Sync App Lib is the underlying worker.

The library handles translating structured data and syncing it to supported accounting software. Our goal is to keep this application as generic and lean as possible, not requiring changes with every modification to the library. The main goals of this app are the following:

1. Provide a quick and easy integration to accounting software.
2. Enable the user to connect accounting software.
3. Pass through any sync requests to the library and record ledger_resources of external objects to objects in the accounting software.

As a "provider" of this application to your users, you have the following capabilities:

1. Create and manage organizations.
2. Create, manage, and associate users to organizations.
3. Authenticate users to the application.
4. Sync data

Supported Ledgers

This application is designed to require minimal modifications with updates to the library. When a new ledger is added, this application will need to be updated to support connecting to the new ledger. Please see the Ledger Sync App Lib for the ledger-specific support, as one ledger may support syncing an object (e.g. Invoice) while another may not.

QuickBooks Online

• Supports QuickBooks Online Oauth2

Xero (coming soon)

Setup

Settings && Configuration

Note: All currently available settings are described in config/settings.yml.

This application uses Config, a gem that manages environment-specific settings. It works by setting values in the appropriate YAML. The following files correspond to the following environments:

file	environment
config/settings.yml	Default settings
config/settings.local.yml	local development (ignored by git)
config/settings/development.yml	development
config/settings/test.yml	test
config/settings/production.yml	production

You can also override settings using environment variables. For example, Settings.api.root_secret_key would be overwritten with ENV['SETTINGS__API__ROOT_SECRET_KEY'], where YAML levels are separated with __ (two underscores).

It is recommended to use environment variables for any sensitive information. Though locally you can use config/settings.local.yml, we have also included the dotenv gem to help you better simulate a production environment.

Below are settings that require a bit of setup or explanation:

Settings.application.mailer_method

Settings.application.mailer_method = :letter_opener

Used by default in development, the application will use the letter_opener gem for delivering mail.

API

Idempotency

All POST requests made to the API require an idempotency key. To do so, provide a Idempotency-Key: <key> header to the request.

The application will save the resulting status code and body of the first request made for any given key, regardless of if it succeeded or failed (including 500 errors). Keys expire after 24 hours, so if a new request with the same key is used in that time frame, the same results will be returned.

An error will be raised if the same key is used but the request body does not match the previous request.

External IDs

Most objects in the API require and external_id attribute. You can then use these interchangeably with the application's auto-generated random IDs. The only constraint for external_id is that it cannot start with the same prefix as the application id. For example, all user ids start with usr_. Your external_id may not start with usr_ to protect from any unintentional collisions.

This feature affords you the ability to not require storing IDs in your database for objects like organizations and users.

Please note that while you may use external_id or id interchangeably (unless otherwise specified), the API will always return the id attribute (e.g. the url attribute of auth_token objects will use id).

Routes

All of the following routes are relative to the Settings.application.host_url supplied in the settings.

Organizations

Create an organization

# Request
post "/api/v1/organizations", external_id: 'my-organization-id-1', name: 'Acme Co.'

# Response
{
  object: 'organization',
  id: 'org_1234567890',
  external_id: 'my-organization-id-1',
  name: 'Acme Co.'
}

Retrieve an organization

# Request
get "/api/v1/organizations/my-organization-id-1"

# Response
{
  object: 'organization',
  id: 'org_1234567890',
  external_id: 'my-organization-id-1',
  name: 'Acme Co.'
}

Update an organization

# Request
post "/api/v1/organizations/my-organization-id-1", name: 'A Different Co'

# Response
{
  object: 'organization',
  id: 'org_1234567890',
  external_id: 'my-organization-id-1',
  name: 'A Different Co'
}

Add user to organization

# Request
post "/api/v1/organizations/my-organization-id-1/users/usr_123"

# Response
{
  object: 'organization_user',
  organization: 'org_1234567890',
  user: 'usr_123'
}

Remove user to organization

# Request
delete "/api/v1/organizations/my-organization-id-1/users/usr_123"

# Response
{
  object: 'organization_user',
  organization: 'org_1234567890',
  user: 'usr_123'
}

Users

Create a user

Creates a user associated with the given organization.

# Request
post "/api/v1/users", external_id: 'asdf', organization: '456'

# Response
{
  object: 'user',
  id: 'usr_1234567890',
  organization: 'org_qwerty',
  ...
}

Authentication

The application uses Auth Tokens generated via the API to authenticate users to the application. Auth Tokens for a given user automatically expire under the following conditions:

• A new auth token is created.

Create an auth token

# Request
post "/api/v1/users/:id/auth_tokens"

# Response
{
  object: 'auth_token',
  id: 'at_asdfasdf',
  url: '{ROOT_URL}/auth/1234567890',
  ...
}

Authenticate a user

Redirect a user to the url of the created auth_token.

Syncs

Create a sync

# Request
post "/api/v1/syncs", {
  organization: 'your_or_our_id',
  resource_external_id: 'your_cus_id',
  resource_type: 'customer',
  operation_method: 'upsert',
  references: {
    customer: {
      'your_cus_id': {
        data: {
          name: 'Sample Customer',
          email: 'sample@example.com'
        }
      }
    }
  }
}

# Response
{
  object: 'sync',
  id: 'sync_abc123',
  status: 'created'
}

Features

API Subdomain

If you want to separate the UI and API, the application can be run on the subdomain https://api.ROOT_URL. This allows you to optimize for high API usage.

Add-Ons

PaperTrail

https://github.com/paper-trail-gem/paper_trail

To enable, set Settings.paper_trail.enabled = true

Development

QuickBooks Online

Setup

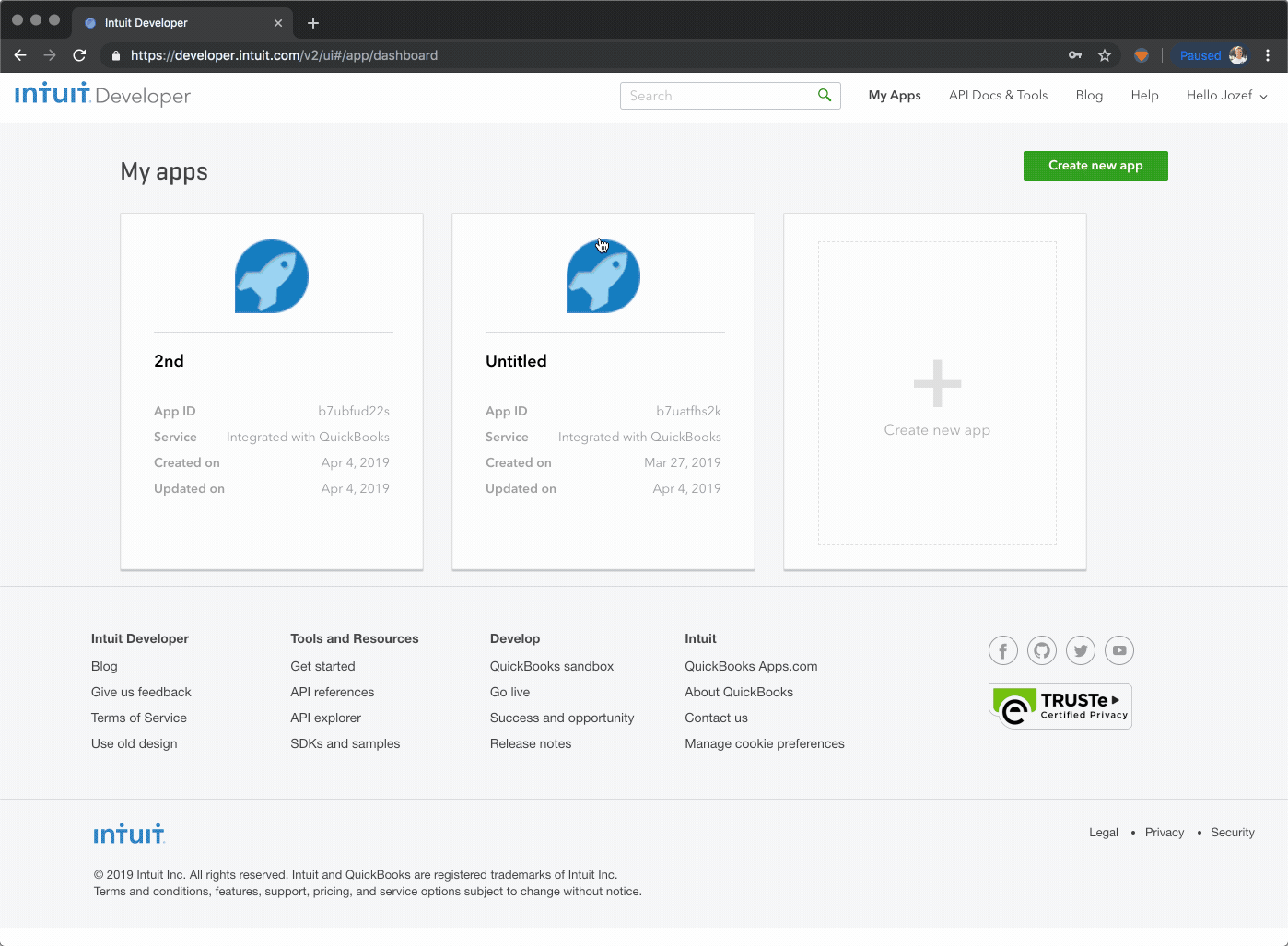

Register at https://developer.intuit.com and create new App as below. In Redirect URIs enter http://localhost:3000/qbo/callback If it says that it's invalid, ignore it and hit save. There is no confirmation, but after refresh it will be persisted.

You will need to set the following ENV vars in your .env or local settings YAML:

SETTINGS__ADAPTORS__QUICKBOOKS_ONLINE__OAUTH_CLIENT_ID: Client ID from App > Keys SETTINGS__ADAPTORS__QUICKBOOKS_ONLINE__OAUTH_CLIENT_SECRET: Client Secret from App > Keys SETTINGS__ADAPTORS__QUICKBOOKS_ONLINE__OAUTH_REDIRECT_URI: http://localhost:3000/ledgers/quickbooks_online/callback

• Access token is issued only for 1h.
• Refresh token is issued for 100 days.
• Once Access token expires, you will need to click Refresh button that will get you new access token.
• Each day they generate new refresh token when you try to refresh.

More details about tokens can be found here

Local Gem Configuration

If you are developing on both this project and the ledger-sync-app-lib, you may want to set your local Gemfile to use your local gem:

1. $ bundle config local.ledger_sync /path/to/ledger_sync/ledger_sync_app
2. Add gem 'ledger_sync', github: 'ledger_sync/ledger_sync', branch: 'master' inside your development and/or test block.

To remove:

$ bundle config --delete local.ledger_sync

Caching

The app leverages fragment caching using a Russian Doll strategy. To enable/disable caching in development, run bundle exec rails dev:cache.

API

Resources

Create a resource

Route

POST /api/v1/resources

Params

attribute	constraints	type	description
external_id	required	string	The new external_id of the resource
organization	required	string	The id or external_id of the organization
type	required	string	A valid type supported by LedgerSync

Example

# Request
post "/api/v1/resources", external_id: 'my-resource-id-1', organization: 'org_abc', type: 'customer'

# Response
{
  object: 'resource',
  id: 'rsrc_1234567890',
  external_id: 'my-resource-id-1',
  organization: 'org_abc',
  type: 'customer
}

Retrieve a resource

Route

GET /api/v1/resources/:id

Example

# Request
get "/api/v1/resources/my-resource-id-1"

# Response
{
  object: 'resource',
  id: 'rsrc_1234567890',
  external_id: 'my-resource-id-1',
  organization: 'org_abc',
  type: 'customer
}

Update a resource

Route

POST /api/v1/resources/:id

Params

attribute	constraints	type	description
external_id	required	string	The new external_id of the resource

Example

# Request
post "/api/v1/resources/my-resource-id-1", external_id: 'a_new_external_id'

# Response
{
  object: 'resource',
  id: 'rsrc_1234567890',
  external_id: 'a_new_external_id',
  organization: 'org_abc',
  type: 'customer
}

Create a ledger_resource

Route

POST /api/v1/ledger_resources

Params

attribute	constraints	type	description
ledger	required	string	The id of the ledger
resource	required	string	The id or external_id of the resource
resource_ledger_id	required	string	The id of the resource in the ledger. This is to be retrieved from the ledger itself.

Example

# Request
post "/api/v1/ledger_resources", ledger: 'ldgr_123', resource: 'rsrc_987', resource_ledger_id: 'qbo_customer_1_id'

# Response
{
  object: 'ledger_resource',
  id: 'rsrc_1234567890',
  ledger: 'ldgr_123',
  resource: 'rsrc_987',
  resource_ledger_id: 'qbo_customer_1_id'
}

Retrieve a ledger_resource

Route

GET /api/v1/ledger_resources/:id

Example

# Request
get "/api/v1/ledger_resources/my-ledger_resource-id-1"

# Response
{
  object: 'ledger_resource',
  id: 'rsrc_1234567890',
  ledger: 'ldgr_123',
  resource: 'rsrc_987',
  resource_ledger_id: 'qbo_customer_1_id'
}

Update a ledger_resource

Route

POST /api/v1/ledger_resources/:id

Params

attribute	constraints	type	description
resource_ledger_id	required	string	The id of the resource in the ledger. This is to be retrieved from the ledger itself.

Example

# Request
post "/api/v1/ledger_resources/my-ledger_resource-id-1", resource_ledger_id: 'new_qbo_customer_1_id'

# Response
{
  object: 'ledger_resource',
  id: 'rsrc_1234567890',
  ledger: 'ldgr_123',
  resource: 'rsrc_987',
  resource_ledger_id: 'new_qbo_customer_1_id'
}
