This project is still a work in progress. The printer has been physically assembled but is still getting some config tweaks and tuning done. Please use any information found here at your own discretion.

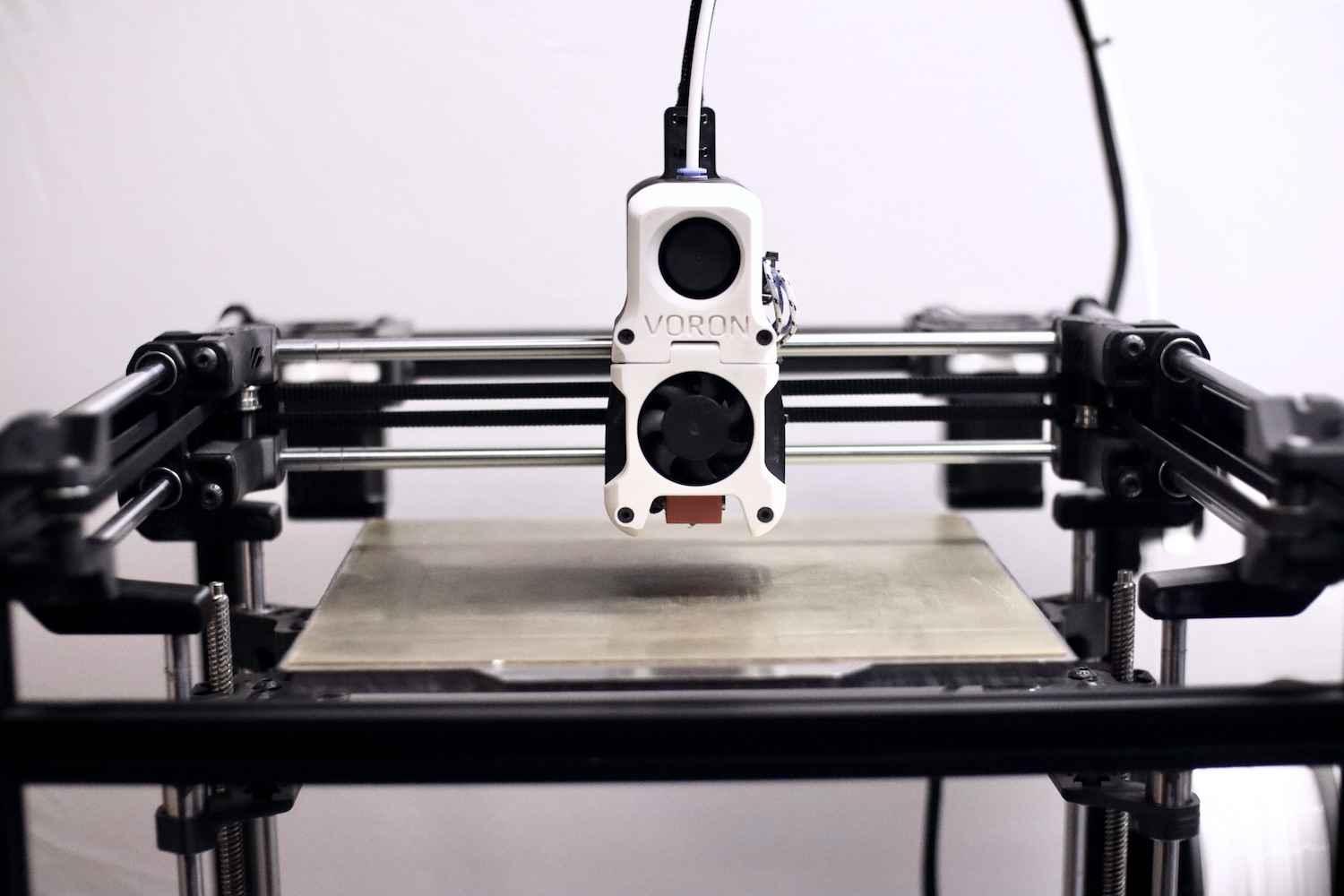

The plan for this project is to upcycle my Monoprice Maker Select 3D into a Voron Legacy, but should work for any Wanhao Duplicator i3 clones. The "plus" models will have additonal work for electronics but is out of scope since I do not have that model. Below are the goals this project was working towards or the "mission statement":
- Reuse the bed from the i3
- Requires 2 modified 3D printed parts (Qty 2 of each)
- Z Bearing Retainer A Upper
- Z Bearing Retainer B Upper
- Requires 2 modified 3D printed parts (Qty 2 of each)
- Forward compatible with future Legacy updates from Voron
- don't fork this into a new printer entirely, at it's core it should still be a Voron Legacy
- Require minimal rewiring
- the wire loop was removed to split the cables to to go different places
- The cable chain was cut off and replaced with 1/2" split wire loom tubing
- The thermister and heater cartridge were replaced with ones that fit a E3D v6 hotend that fits in the afterburner toolhead.
Use the Configurator on the Legacy webpage to generate a full BOM. Modifications to this BOM are outlined in the next section.
- Go to the Legacy webpage
- Click on "Configurator"
- Choose "New Build. Give me the full BOM."
- Choose "Blind Joints"
- Choose "Custom Size"
- Enter Frame Dimensions as follows:
- Width: 410
- Depth: 410
- Height: 440
- Click "Download" and save csv BOM
- Click "Show" to see full BOM in browser
| Category | Part Description | Qty | Notes |
|---|---|---|---|
| Motion | |||
| Motion | Linear Shaft 8x350mm Shaft | 4 | |
| Motion | Linear Shaft 8x320mm Shaft | ||
| Motion | LM8LUU Linear Bearing | 10* | |
| Motion | GT2 Open Belt LL-2GT-6 (6mm wide) - 1690mm | 2 | |
| Motion | |||
| Motion | F695 Bearing | 24 | |
| Frame | Replaced with next line | ||
| Frame | 2020 T-Slot Extusion - 410mm | 4** | |
| Frame | 2020 T-Slot Extusion - 370mm | Qty 4 Replaced with next line | |
| Frame | 2020 T-Slot Extusion - 400mm | 4** | |
| Frame | Replaced with next line | ||
| Frame | 2020 T-Slot Extusion - 190mm | 2 | |
| Frame | 2020 Corner Brackets (MiSUMi HBLFSNB5) | 16*** | |
| Fasteners | M5x40 SHCS | 6 | |
| Fasteners | M5x30 BHCS | 12 | |
| Fasteners | M5x16 BHCS | 41 |
|
| Fasteners | M5x10 BHCS | 26 | |
| Fasteners | M5 Washer | 24 | |
| Fasteners | M5 T-Nut | 51 |
|
| Fasteners | M5 Hexnut | 4 | |
| Fasteners | M4x8 BHCS | 5 | |
| Fasteners | M3x8 SHCS | 20 | |
| Fasteners | M3x40 SHCS | 5 | |
| Fasteners | M3x30 SHCS | 20 | |
| Fasteners | M3x20 SHCS | 8 | |
| Fasteners | M3x16 SHCS | 16 | |
| Fasteners | M3x12 SHCS | 8 | |
| Fasteners | M3 Threaded Insert | 43 | |
| Fasteners | M2x10 Self-Tapping Screw | 8 | |
| Fasteners | |||
| Electronics | Replaced with next line | ||
| Electronics | E3D V6 Bowden Hotend Kit (12V) | 1 | |
| Electronics | Replaced with next line | ||
| Electronics | BLTouch | 1***** | |
| Clockwork | BMG dual drive extruder kit | 1 |
*Possible to reuse 2 linear bearings from i3, if they can be removed from the bearing block.
**Not strictly required, but I think the assembly is easier with these modified lengths.
***These aren't on the original BOM, the design intent is to have the ends of the extrusions tapped and drilled so that they can be screwed together with M5 bolts. In fact the design doesn't allow for them in all corners. I used them anyway since I already bought them, but I'd suggest leaving them off.
**** I originally added more to the BOM for the corner brackets, but the corner brackets are totally not required.
*****I am going to keep using my BLTouch as I really like printing on glass and the inductive probes only work on a spring steel plate.
Other than the above categories, the rest of the BOM categories should be safe to ignore. I included a few lines from the "Electronics" category because they're required for the Afterburner extruder module. I also added a line for the BMG dual drive extruder kit because I plan on keeping this a direct drive printer, not a bowden printer like the default Legacy build has.
With 5 exceptions, all printed parts can be sourced from Voron directly. This repo was forked from the original Voron Legacy repo at release v1.0 and all STLs are still present in this repo for completeness, but it is best practice to get the latest files directly from Voron.
- The Z Bearing Retainer A Upper and Z Bearing Retainer B Upper needed to be modified to move the bed mounting hole 3mm away from the bearing hole in the X direction.
- The install location of the "Z Shaft Support - Lower" also needs to be moved which required a redesign of the "Z Alignment Jig".
- The x_carriage_left and x_carriage_right were modified to house a BLTouch instead of the induction probe. This is not required, but it's a not neater to have it hidden inside the carriage rather than hanging off the side. This way it's as close to the nozzle as possible as well.
These modified STLs are available in the STLs/i3 folder of this repo with the exception being the BLTouch carriage. The carriage files are not yet in this repo as my original design worked but wasn't super robust; it's easy to accidentally bump the BLTouch out of place.
The Voron Legacy Fusion 360 model was used to generate the modified STLs. This modified model is available along with the original in the CAD folder of this repo as well as a .STEP export or each.
The firmware of choice for Vorons is Klipper, which works on the stock Melzi board as well as pretty much anything else that can run an FDM printer. My i3 has an SKR-Mini E3 v2.0, so when I get that far there will be a "skr-mini_e3_v2.0_config.cfg" file in the Firmware folder of this repo.
Please note that I've left the default "skr_v1.3_config.cfg" file in this repo for now as reference, but it has not been reconfigured for the "Legacy Reduplicator i3" print volume or internals.
This repo was forked on Jan 18, 2022 and may be out of date from the original. Please see the official release of the Voron Legacy 3d printer at the Voron Design website.
