Illumination

IMPORTANT: The main branch of this repo currently handles ICA V1. For ICA V2, see the v2 branch.

• Installation
• Running
  • Updating
• Features
  • Display JSON of Workflow Version Definitions
  • Display Summarised JSON Information In Tables
• Docker
  • Using Docker
  • Docker Shortcuts
• Docker Compose Example
  • Files
• Developer Notes
  • Adding new endpoints
  • Resources
• Routes Supported

Node.js Express app that interacts with the Illumina Connected Analytics (ICA) API. Supports only GET endpoints.

Installation

Step 1: Install Node.js from https://nodejs.org/en/download if not already done.

e.g.:

brew install node

# check that it works
node --version

Step 2: Clone illumination repo and install dependencies (should take a minute max).

git clone https://github.com/umccr/illumination
cd illumination
npm install

Running

npm start

• Ctrl+C to stop

Updating

Pull latest code changes and install/update newer dependencies:

cd illumination
git pull
npm install

Features

Display JSON of Workflow Version Definitions

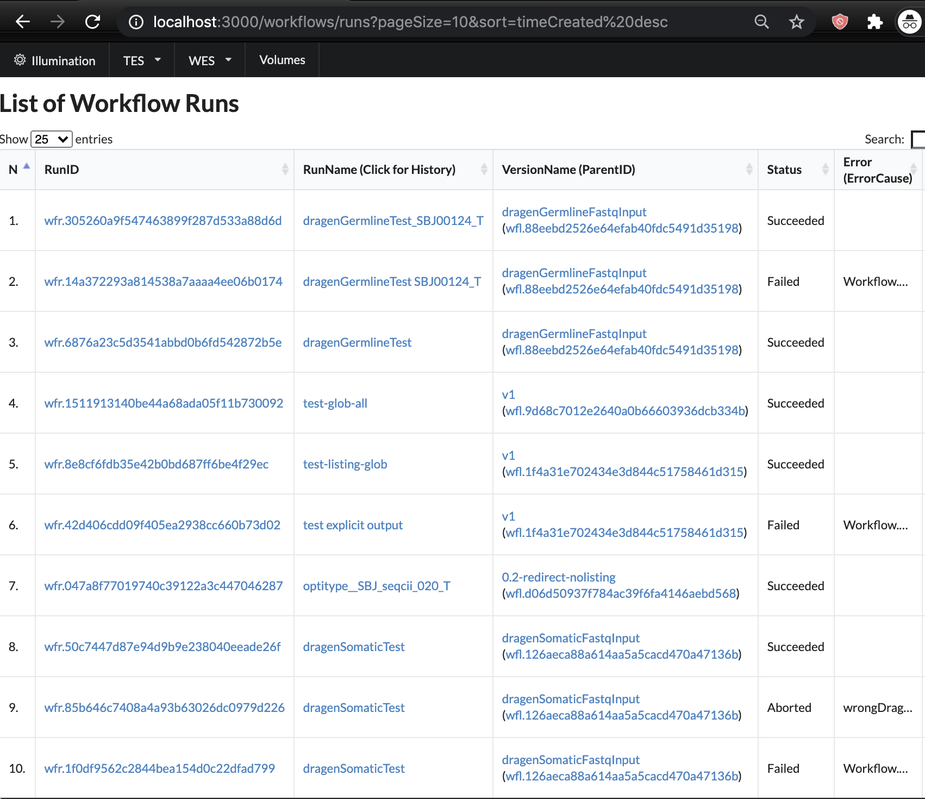

Display Summarised JSON Information In Tables

Docker

Using Docker

# build the image
docker build -t victorskl/illumination:latest .

# set your ICA access token
export ICA_ACCESS_TOKEN='...'
# run the container
docker run --rm --env ICA_ACCESS_TOKEN -p 3000:3000 victorskl/illumination:latest

Docker Shortcuts

For convenience, enter the following into your ~/.bashrc. Then you can simply type run_illumination in order to run the illumination docker command.

# ICA access token
if [[ -f ~/.ica/.session.aps2.yaml ]]; then
        export ICA_ACCESS_TOKEN=$(cat ~/.ica/.session.aps2.yaml | {
                             grep '^access-token: '
                           } | {
                             cut -d' ' -f2
                           })
fi

# ILLUMINATION ALIAS
alias run_illumination="docker run --rm -i -t --env ICA_ACCESS_TOKEN --publish 3000:3000 victorskl/illumination:latest"

Note: there can be many variations on how you would like to automate ICA token generation then launch illumination into a specific ICA project context. i.e., bash-ing, alias-ing, zZZ-ing, etc... See relevant wiki entry and/or https://github.com/umccr/ica-ica-lazy for more pointers.

Developer Notes

Adding new endpoints

Check out how to add/edit endpoints via the following commits:

• /workgroups endpoint commit
• /tokens/details endpoint commit

Resources

• Express.js: https://expressjs.com/
• EJS: https://ejs.co/
• axios: https://github.com/axios/axios

Routes Supported

// See app.js
const listEndpoints = require("express-list-endpoints");
console.log(listEndpoints(app));

[
  { path: '/', methods: [ 'GET' ] },
  { path: '/tasks', methods: [ 'GET' ] },
  { path: '/tasks/runs', methods: [ 'GET' ] },
  { path: '/tasks/runs/:runid', methods: [ 'GET' ] },
  { path: '/tasks/:taskid', methods: [ 'GET' ] },
  { path: '/tasks/:taskid/versions', methods: [ 'GET' ] },
  { path: '/tasks/:taskid/versions/:versionid', methods: [ 'GET' ] },
  { path: '/workflows', methods: [ 'GET' ] },
  { path: '/workflows/runs', methods: [ 'GET' ] },
  { path: '/workflows/runs/:runid', methods: [ 'GET' ] },
  { path: '/workflows/runs/:runid/history', methods: [ 'GET' ] },
  { path: '/workflows/versions', methods: [ 'GET' ] },
  { path: '/workflows/versions/:versionid', methods: [ 'GET' ] },
  { path: '/workflows/signals', methods: [ 'GET' ] },
  { path: '/workflows/signals/:signalid', methods: [ 'GET' ] },
  { path: '/workflows/:workflowid', methods: [ 'GET' ] },
  { path: '/workflows/:workflowid/versions', methods: [ 'GET' ] },
  { path: '/workflows/:workflowid/versions/:versionid', methods: [ 'GET' ] },
  { path: '/usages', methods: [ 'GET' ] },
  { path: '/health', methods: [ 'GET' ] },
  { path: '/regions', methods: [ 'GET' ] },
  { path: '/files', methods: [ 'GET' ] },
  { path: '/files/:fileid', methods: [ 'GET' ] },
  { path: '/folders', methods: [ 'GET' ] },
  { path: '/folders/:folderid', methods: [ 'GET' ] },
  { path: '/volumes', methods: [ 'GET' ] },
  { path: '/volumes/:volumeid', methods: [ 'GET' ] },
  { path: '/subscriptions', methods: [ 'GET' ] },
  { path: '/subscriptions/:subscriptionid', methods: [ 'GET' ] },
  { path: '/tokens/details', methods: [ 'GET' ] },
  { path: '/workgroups', methods: [ 'GET' ] },
  { path: '/projects', methods: [ 'GET' ] },
  { path: '*', methods: [ 'GET' ] }
];

Docker compose example

To run multiple containers for different projects, one can use docker-compose to spin up a new illumination on a separate port.

Here's an example of a docker-compose set up

Files

• build.sh
• docker-compose.yml
• .env

build.sh

Script to update .env with ICA access tokens per account, and then restarting the docker container.

It is recommended this script be invoked once per day (since tokens expire every 48 hours) via a crontab.

Example crontab entry

0 4 * * * (cd /opt/illumination; bash build.sh 2>/dev/null)

Example build.sh script

#!/usr/bin/env bash

get_api_key(){
  # Ensure no new line is at the end of ica-api-key.txt
  # Store this file with 600 permissions
  cat "$HOME/.ssh/ica-api-key.txt"
}

get_personal_token(){
  ica tokens create --api-key "$(get_api_key)"
}

get_project_token(){
  project_name="$1"
  personal_token="$2"
  ica tokens create \
    --api-key "$(get_api_key)" \
    --project-name "${project_name}" \
    --access-token "${personal_token}"
}

personal_token="$(get_personal_token)"

#get_v2_project_token(){
#  project_name="$1"
#}

echo "ICAV1_ACCESS_TOKEN_DEVELOPMENT=$(get_project_token "development" "${personal_token}")" > .env
echo "ICAV1_ACCESS_TOKEN_PRODUCTION=$(get_project_token "production" "${personal_token}")" >> .env
echo "ICAV1_ACCESS_TOKEN_STAGING=$(get_project_token "staging" "${personal_token}")" >> .env
echo "ICAV2_ACCESS_TOKEN=$(icav2 tokens create)" >> .env
chmod 600 .env

# Restart docker service
docker compose up --detach --force-recreate

.env file

ICAV1_ACCESS_TOKEN_DEVELOPMENT=...
ICAV1_ACCESS_TOKEN_PRODUCTION=...
ICAV1_ACCESS_TOKEN_STAGING=...
ICAV2_ACCESS_TOKEN=...

docker-compose.yml file

version: '3'
services:
  icav1_development:
    image: ghcr.io/umccr/illumination:1.0.1
    container_name: icav1_development_illumination
    environment:
      - TZ=Australia/Melbourne
      - ICA_ACCESS_TOKEN=${ICAV1_ACCESS_TOKEN_DEVELOPMENT}
      - PORT=3000
    restart: unless-stopped
    ports:
      - "3000:3000"
  icav1_production:
    image: ghcr.io/umccr/illumination:1.0.1
    container_name: icav1_production_illumination
    environment:
      - TZ=Australia/Melbourne
      - ICA_ACCESS_TOKEN=${ICAV1_ACCESS_TOKEN_PRODUCTION}
      - PORT=3000
    restart: unless-stopped
    ports:
      - "3001:3000"
  icav1_staging:
    image: ghcr.io/umccr/illumination:1.0.1
    container_name: icav1_staging_illumination
    environment:
      - TZ=Australia/Melbourne
      - ICA_ACCESS_TOKEN=${ICAV1_ACCESS_TOKEN_STAGING}
      - PORT=3000
    restart: unless-stopped
    ports:
      - "3002:3000"
  icav2:
    image: ghcr.io/umccr/illumination:2.0.1
    container_name: icav2
    environment:
      - TZ=Australia/Melbourne
      - ICAV2_ACCESS_TOKEN=${ICAV2_ACCESS_TOKEN}
      - PORT=3000
    restart: unless-stopped
    ports:
      - "3003:3000"
