fahidattique55/FAPanels

Repository files navigation

Alt text

Swift version Support Dependecy Manager Version Carthage Compatible License Platform CocoaPods CocoaPods

Famous Apps Using FAPanels


New Features Added


  • Swift Package Manager Support Added

Change Color Of Center Panel While Panning


open var colorForTapView: UIColor = UIColor.black.withAlphaComponent(0.35)
open var shouldAnimateWithPan: Bool = true

Issues Resolved ( > 0.5.0 only)


  • XCode 10 support
  • Swift 5.0 support

Issues Resolved ( > 0.4.0 only)


  • Presenting a UINavigation controller distorts the frames of center panel while left panel is open and its state is front, is resolved
  • Crash when right panel is nil and layout panel containers are updated is resolved

New Features Added ( > 0.3.5 only)


  • Execute a completion closure for any state of side menus, right after the animation of changing center panelVC
  • Smooth logout feature ( i.e: When user taps on logout button/cell in the side menu, you will change the center panelVC and then can set left panelVC to "nil" as you don't want the user to use side menus in login/signup stories)
  • Change Left/Right menus with smooth center panelVC animations

New Features Added ( > 0.3.1 only)


  • Create as many instances of FAPanelController with code only
  • Configure its left, right and center panels as you want
  • Update the Root Window Controller with any FAPanelController object

Usage

//  Create FAPanelController object with out any NSCoder, Storyboards and Nib files

let rootController = FAPanelController()

//  Configure the panels as you want and assign this panel controller to root controller of window.

window?.rootViewController = rootController


//  You can also set window's root controller to any FAPanelController object with different FAPanelConfigurations at any time.

New Features Added ( > 0.3.0 only)


  • Right panel position (front/back) to center panel
  • Dark Overlay on right panel, if right panel position is front

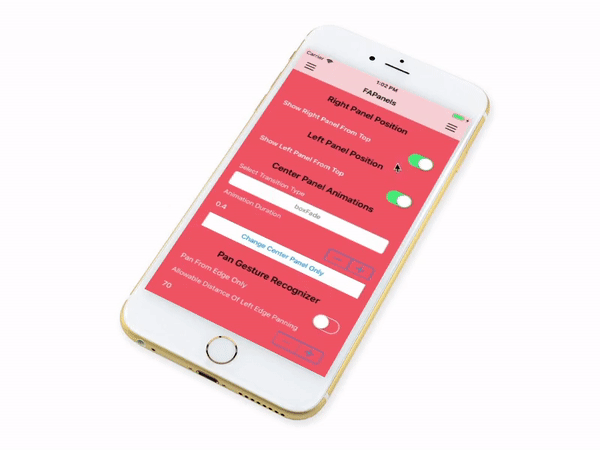

Right Panel Position

back front

Usage

//  Set the Right Panel position

let rootController: FAPanelController = window?.rootViewController as! FAPanelController

rootController.rightPanelPosition = .front
rootController.rightPanelPosition = .back

New Features Added ( > 0.2.1 only)


  • Left panel position (front/back) to center panel
  • Shadow on left panel, if left panel position is front
  • FAPanel State Delegate feature

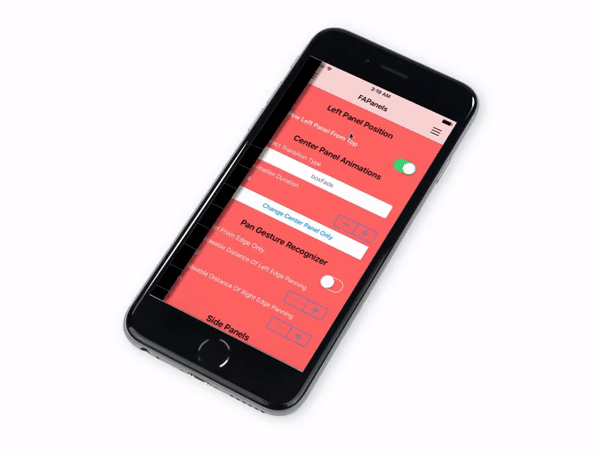

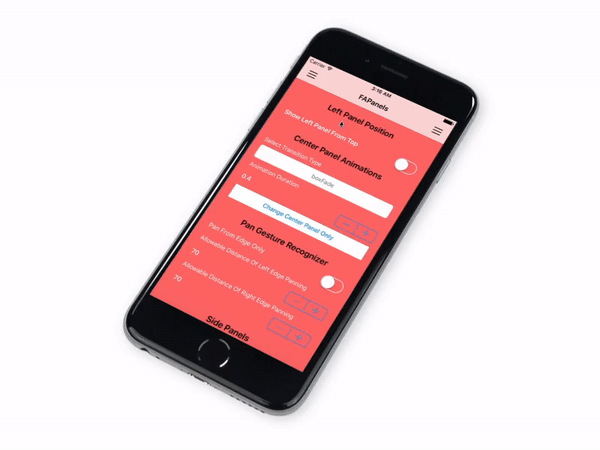

Left Panel Position

back front

Usage

//  Set the Left Panel position

let rootController: FAPanelController = window?.rootViewController as! FAPanelController

rootController.leftPanelPosition = .front
rootController.leftPanelPosition = .back

Features


  • Implementation with code & storyboard
  • Left, right and center panel supported
  • Change left, right or center panel
  • Open left, right or center panel
  • Supports Animations
  • Multiple Panel configurations
  • Supports status bar preffered style for all panels

Transitions supported


  • Flip From Left
  • Flip From Right
  • Flip From Top
  • Flip From Bottom
  • Curl Up
  • Curl Down
  • Cross Dissolve
  • Move Up
  • Move Down
  • Move Left
  • Move Right
  • Split Horizontally
  • Split Vertically
  • Dump Fall
  • Box Fade

Panel configurations

// Panels width

var leftPanelWidth : CGFloat = 280  //  It will override the gap percentage value
var rightPanelWidth: CGFloat = 280

var leftPanelGapPercentage : CGFloat = 0.8
var rightPanelGapPercentage: CGFloat = 0.8


// resizes all subviews as well

var resizeLeftPanel : Bool = false
var resizeRightPanel: Bool = false


// Adds push animation on side panels

var pusheSidePanels: Bool = false


// Bounce effects on panel animations

var bounceOnLeftPanelOpen  : Bool = true
var bounceOnRightPanelOpen : Bool = true
var bounceOnCenterPanelOpen: Bool = true


var bounceOnLeftPanelClose   : Bool = false
var bounceOnRightPanelClose  : Bool = false
var bounceOnCenterPanelChange: Bool = true


var bouncePercentage : CGFloat = 0.075
var bounceDuration   : CGFloat = 0.1


//  Panning Gesture

var canRecognizePanGesture: Bool = true

var panFromEdge          : Bool = false
var minEdgeForLeftPanel  : CGFloat = 70.0
var minEdgeForRightPanel : CGFloat = 70.0

var canLeftSwipe : Bool = true
var canRightSwipe: Bool = true


// restricts panning gesture to work for top VC of Navigation/TabBar Controller

var restrictPanningToTopVC: Bool = true


// Handles the interface auto rotation of visible panel

var handleAutoRotation: Bool = true


// Applies corner radius to panels

var cornerRadius: CGFloat = 0.0


// Shadow configurations

open var shadowColor   : CGColor = UIColor.black.cgColor
open var shadowOffset  : CGSize  = CGSize(width: 10.0, height: 0.0)
open var shadowOppacity: Float = 0.5


// Remove panels from super view when possible

var unloadRightPanel: Bool = false
var unloadLeftPanel : Bool = false


// Max animation duration for animations of side panels

var maxAnimDuration  : CGFloat = 0.20


// percentage of screen's width to the centerPanel.view must move for panGesture to succeed

var minMovePercentage: CGFloat = 0.15


// Only Center Panel Change animation

var changeCenterPanelAnimated : Bool = true
var centerPanelTransitionType : FAPanelTransitionType = .crossDissolve
var centerPanelTransitionDuration: TimeInterval = 0.60

Installation

Cocoapods

CocoaPods is a dependency manager for Cocoa projects. You can install it with the following command:

$ gem install cocoapods

To integrate FAPanel into your Xcode project using CocoaPods, specify it in your Podfile:

source 'https://github.com/CocoaPods/Specs.git'
platform :ios, '9.0'
use_frameworks!

target '<Your Target Name>' do
pod 'FAPanels'
end

Then, run the following command:

$ pod install

Carthage

Carthage is a decentralized dependency manager that builds your dependencies and provides you with binary frameworks.

You can install Carthage with Homebrew using the following command:

$ brew update
$ brew install carthage

To integrate FAPanels into your Xcode project using Carthage, specify it in your Cartfile:

github "fahidattique55/FAPanels" >= 0.2.0

Run carthage update to build the framework and drag the built FAPanels.framework into your Xcode project.

Usage

Step 1

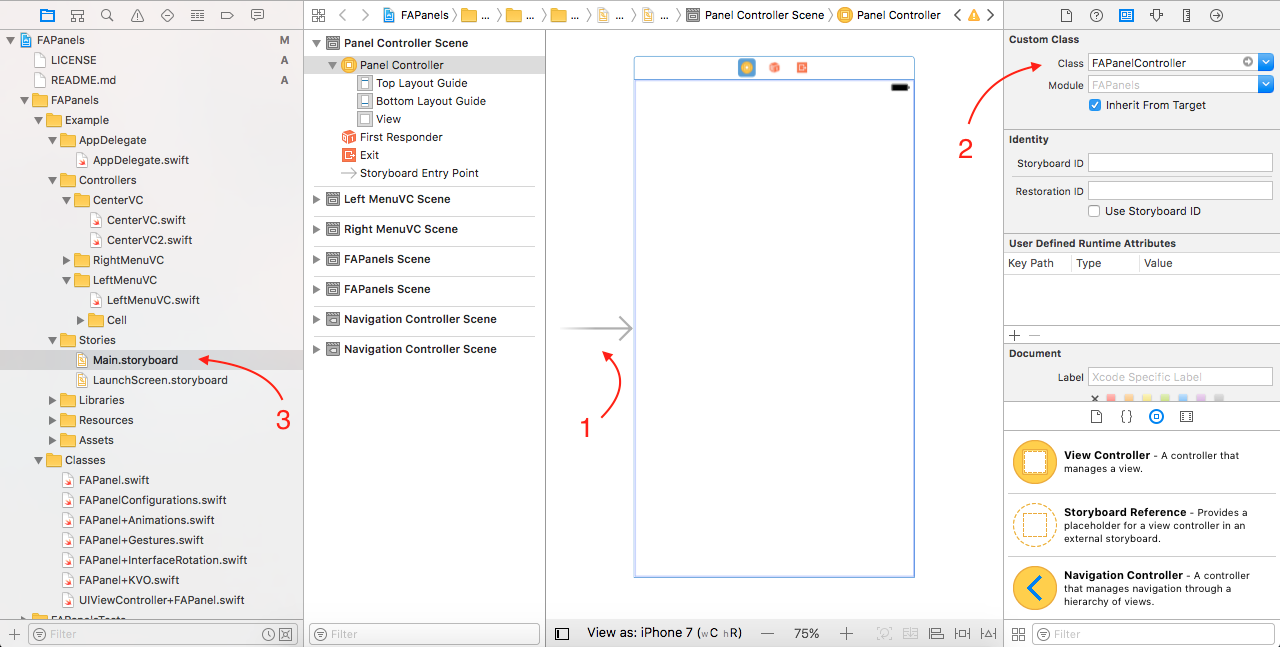

  • Set the root window as FAPanel controller as shown in below image,

Alt text

Step 2

  • Add the following code in AppDelegate.swift file,
//  Load the Controllers

let mainStoryboard: UIStoryboard = UIStoryboard(name: "Main", bundle: nil)

let leftMenuVC: LeftMenuVC = mainStoryboard.instantiateViewController(withIdentifier: "LeftMenuVC") as! LeftMenuVC

let rightMenuVC: RightMenuVC = mainStoryboard.instantiateViewController(withIdentifier: "RightMenuVC") as! RightMenuVC

let centerVC: CenterVC = mainStoryboard.instantiateViewController(withIdentifier: "CenterVC1") as! CenterVC
let centerNavVC = UINavigationController(rootViewController: centerVC)




//  Set the Panel controllers with just two lines of code

let rootController: FAPanelController = window?.rootViewController as! FAPanelController
rootController.center(centerNavVC).left(leftMenuVC).right(rightMenuVC)
  • All done! Run the code and see the magic.

Step 2 (Continue - Panel Controllers)

  • Don't want to set RightMenuVC then just remove the right panel code i.e,
//  This is the code to set all panels

rootController.center(centerNavVC).left(leftMenuVC).right(rightMenuVC)


//  Updated code which have only left and center panels

rootController.center(centerNavVC).left(leftMenuVC)


//  Similarly, if left panel is not needed the remove the left panel code.

rootController.center(centerNavVC).right(rightMenuVC)


//  In case you only want the center panel, then update code to

rootController.center(centerNavVC)

Step 2 (Continue - Panel Configurations)

  • Configre the Panels before setting the panels
rootController.configs.rightPanelWidth = 80
rootController.configs.bounceOnRightPanelOpen = false



//  Should Pan from edge? Add these lines of code,

rootController.configs.panFromEdge = false
rootController.configs.minEdgeForLeftPanel  = 70
rootController.configs.minEdgeForRightPanel = 70


rootController.center(centerNavVC).left(leftMenuVC).right(rightMenuVC)


//  For more configurations and their details, Please have a look into ``` FAPanelConfigurations.swift ``` file

Access Panel

  • Panel can be accessed from any view controller,
panel?.configs = FAPanelConfigurations()

Open/Close Panels

  • Open Left or Right panels with/without animations
panel?.openLeft(animated: true)
panel?.openRight(animated: true)

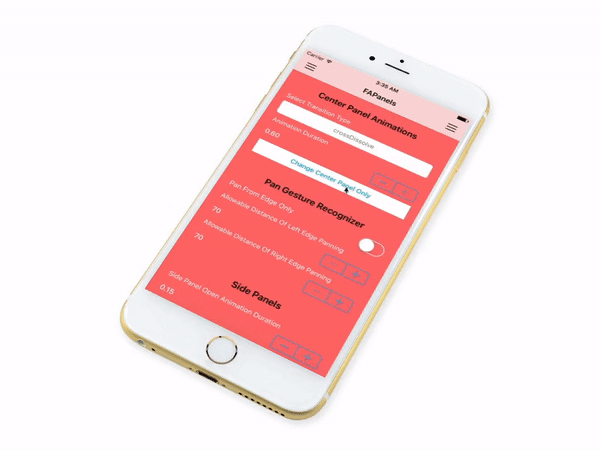

  • Open/Close Panels Preview

Change/Remove Panels

  • Change Left, Right or Center Panel from any view controller
//  Change Center panel

let centerVC: UIViewController = mainStoryboard.instantiateViewController(withIdentifier: "CenterVC2")
let centerNavVC = UINavigationController(rootViewController: centerVC)

panel!.center(centerNavVC)



//  Change Left panel

let leftVC: UIViewController = mainStoryboard.instantiateViewController(withIdentifier: "LeftVC")
panel!.left(leftVC)


//  Remove Left panel

panel!.left(nil)
  • Preview, when changing center panel from left/right panels

Change Center Panel (With custom transitions and durations)

  • Change Left, Right or Center Panel from any view controller
//  Specify the transition type

panel!.configs.centerPanelTransitionType = .transitionOption     // Transitions supported are mentioned in FAPanelTransitionType


//  Specify the transition duration

panel!.configs.centerPanelTransitionDuration = 0.60


//  Update the center panel

panel!.center(centerNavVC)

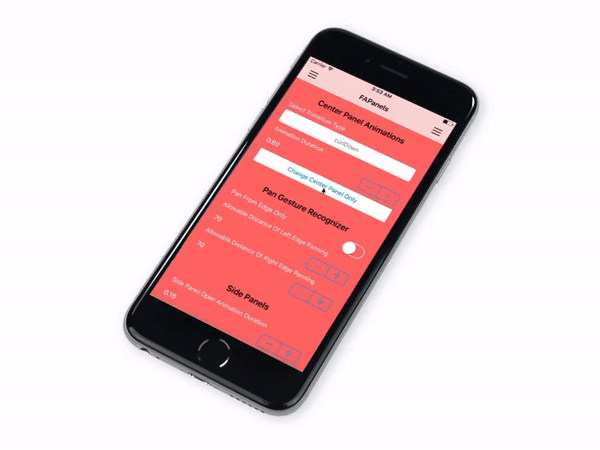

  • Transitions Preview
flipFromLeft flipFromRight
flipFromTop flipFromBottom
curlUp curlDown
crossDissolve moveRight
moveLeft moveUp
moveDown splitVertically
splitHorizontally dumpFall
boxFade

Supports interface rotation

License

FAPanels is licensed under the Apache License 2.0.

For more details visit http://www.apache.org/licenses/LICENSE-2.0

Author

Fahid Attique - (https://github.com/fahidattique55)
