DataStructures-CheatSheet

Data Structures everyone should know

• DataStructures-CheatSheet
• Linked List
• Array
• Hash Table
• Stack and Queue
  • Stack
  • Queue
• Graphs and Trees
  • Graphs
  • Trees
    • Binary Search Tree (BST)

---

Linked List

• Contains VALUE and POINTER

x, y are of type ListNode. NOT in an Array

Ex: [x, ..., y]

-- Head node is "x"
---- Head node's "next" points to next Node
-- Tail node is "y"
---- Tail node's "next" points to null

PROS: Good at adding new nodes and deleting nodes
CONS: Retrieval

Array

• Continuous block of cells in computer memory side-by-side

PROS: Retrieval
CONS: Adding elements, Searching

Hash Table

• Uses hashing functions to store in memory
• Blocks of memory don't have to be next to each other, can be stored anywhere

PROS: Retrieval, Adding/Removing keys
CONS: Collisions

Stack and Queue

Stack

• Last IN / First OUT
• push(n) IN, then pop() OFF the TOP
• Every language keeps track of the functions that have been called with a call stack.
• Important for Depth-first search (DFS)

Queue

• First IN / First OUT (like a real-life queue)
• Adding an item to the end is called enqueue-ing and removing it from the front is called dequeue-ing
• Used for Breadth-first search (BFS)

PROS: efficient to add & remove
CONS: limited use cases

Graphs and Trees

Graphs

• "Graph Theory"
• Similar to linked list, where we have NODES pointing to other NODES. Except in this case, the pointers are called EDGES.

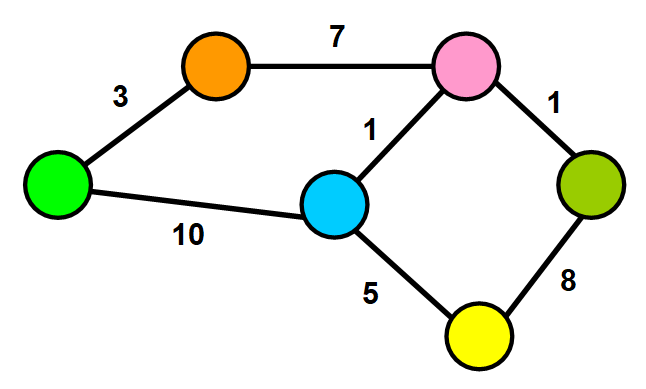

• Edges can also have WEIGHTS assigned to them
• Example: Two cities can be NODES, while the distance between them is an EDGE
• Example: Social media networks can/are stored as graphs in order to facilitate complex user relationships

Trees

• A special kind of hierarchical graph called a TREE, in which the data expands out in ONE DIRECTION.
• Example: like an HTML tree with nexted elements:

<div id="parent">
  <p id="child1">Hello</p>
  <p id="child2">World</p>
</div>

Binary Search Tree (BST)

• Has specific rules that let us do efficient searching
• Rules
  1. 0, 1, or 2 children (left or right, or both)
  2. Left Child Node < Parent Node
  3. Right Child Node > Parent Node
• We can traverse through a tree and always know where an element is

• BST is not the perfect data structure
  • If you add elements in a weird order, it can get very "one-sided" (or imbalanced)
• However, self-balancing trees exist (these are advanced data structures):
  • Red-black Tree
  • B-Trees
