Attention! Version (1.0.0 and higher) has breaking configuration changes. The easiest way is to just add the card and modify the generated configuration.

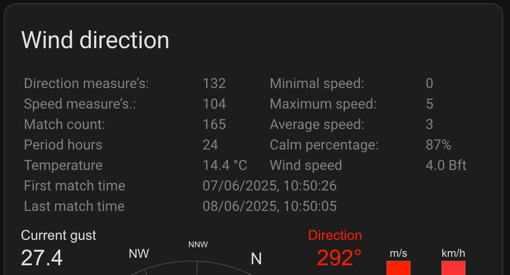

A Home Assistant Lovelace custom card to show wind speed and direction data in a Windrose diagram.
This card is available in HACS (Home Assistant Community Store). HACS is a third party community store and is not included in Home Assistant out of the box.
-
Download and copy
windrose-card.js
from the latest release into yourconfig/www
directory. -
Add the resource reference as decribed below.
-
Move into your
config/www
directory. -
Grab
windrose-card.js
:
$ wget https://github.com/aukedejong/lovelace-windrose-card/releases/latest/download/windrose-card.js
- Add the resource reference as decribed below.
If you configure Lovelace via YAML, add a reference to windrose-card.js
inside your configuration.yaml
:
resources:
- url: /local/lovelace-windrose-card/windrose-card.js?v=0.0.1
type: module
Else, if you prefer the graphical editor, use the menu to add the resource:
- Open any lovelace view
- Select from the three dot menu - "edit dashboard"
- The three dot menu is then replaced with another one, select the new three-dot menu (and do not select raw configuration editor*, it will tell you when you try to save it with the resource section, that for adding resources you have to use the three-dot menu choice "Manage Resources" instead). Select "Manage Resources"
- Click "Add Resource",
- Enter this for url: /hacsfiles/lovelace-windrose-card/windrose-card.js
- Click the check box for "Javascript Module" and
- Click the word "Create" in the corner to add the entry.
Name | Type | Default | Required | Description |
---|---|---|---|---|
type | string | x | custom:windrose-card . |
|
title | string | - | The card title. | |
wind_direction_entity | object | x | The wind direction entity, having directing in degrees as the state. | |
windspeed_entities | object | x | One are more windspeed entities. Only the first is used for the windrose. | |
refresh_interval | number | 300 | - | Refresh interval in seconds |
hours_to_show (DEPRECATED) | number | - | Deprecated. Still works for now. Use the data period object instead. | |
data_period | object | x | Configure what data period to query. See object data_period below. Only one options should be configured. | |
max_width | number | null | - | Use to limit the with (and height) of the windrose. |
windspeed_bar_location | string | bottom | - | Location of the speed bar graph: bottom , right |
windspeed_bar_full | boolean | true | - | When true, renders all wind ranges, when false, doesn't render the speed range without measurements. |
hide_windspeed_bar | boolean | false | - | Hides all windspeed bars. |
output_speed_unit | string | mps | - | Windspeed unit used on card, see Speed unit options bellow. |
output_speed_unit_label | string | - | Overwrite the output speed units name, only for display. | |
center_calm_percentage | boolean | true | - | Show the calm speed percentage in the center of windrose. Directions corresponding with speeds in the first speedrange are not displayed in a direction leave. |
speed_range_beaufort | boolean | true | - | Uses the Beaufort speed ranges. The exact Beaufort ranges depend on the output windspeed unit. |
speed_range_step | number | depends on output speed unit | - | Sets the speed range step to use. Not possible for output speed unit bft (Beaufort) . |
speed_range_max | number | depends on output speed unit | - | Sets the speed range max to use. Not possible for output speed unit bft (Beaufort). For example: step 5, max 20 creates ranges: 0-5, 5-10, 10-15, 15-20, 20-infinity |
speed_ranges | object | depends on output speed unit | - | Define custom speedranges and colours. |
cardinal_direction_letters | string | NESW | - | The cardinal letters used in the windrose. |
wind_direction_count | string | 16 | - | How many wind direction the windrose can display, min. 4 max. 32 |
windrose_draw_north_offset | number | 0 | - | At what degrees the north direction is drawn. For example, if you want the windrose north orientation the same as your properties north orientation |
matching_strategy | string | direction-first | - | How to match direction and speed measurements. Find a speed with each direction or a direction with each speed measurement. Options: direction-first , speed-first |
colors | object | - | Configure colors for different parts of the windrose and windspeedbar. See object Colors. | |
log_level | string | WARN | - | Browser console log level, options: NONE, ERROR, WARN, INFO, DEBUG and TRACE |
Only one of the options should be configured.
Name | Type | Default | Required | Description |
---|---|---|---|---|
hours_to_show | number | - | Show winddata for the last number of hours. Number higher then 0. | |
from_hour_of_day | number | - | Show winddata from the configured hours till now. 0 is midnight, so only data of the current day is used. If the set hour is not yet arrived, data from the previous day from that hour is used. |
Name | Type | Default | Required | Description |
---|---|---|---|---|
entity | string | x | Wind speed entity | |
use_statistics | boolean | false | - | Use Home Assistant 5 minute statistics data, works only if available for this entity. Can make fetching data faster. |
direction_unit | string | degrees | - | Wind direction unit, options: degrees, letters. Where letters being N, NE upto 32 directions. |
direction_compensation | number | 0 | - | Compensate the measured direction in degrees. |
direction_letters | string | NESWX | - | Only used when direction_unit is 'letters'. Some weather integrations use language specific letters. With this property you can change the default letters used. See https://en.wikipedia.org/wiki/Points_of_the_compass for more info. |
Name | Type | Default | Required | Description |
---|---|---|---|---|
entity | string | x | Wind speed entity . | |
name | string | - | Label, displayed with the windspeed bar. | |
use_statistics | boolean | false | - | Use Home Assistant 5 minute statistics data, works only if available for this entity. Can make fetching data faster. |
render_relative_scale | boolean | true | - | Renders the blocks in the windspeed bar relative to the speedrange size. Set to false evenly distributes the blocks. |
speed_unit | string | auto | - | Windspeed unit of measurement, see Speed unit options bellow. |
Default is auto. When no windspeed unit is configured, the unit_of_measurement from Home Assisstant is used.
When your windspeed entity uses an unit of measurement not mentioned in the table below, please open an issue in GitHub.
Name | Description | Input | Output | Recognized HA units of measurements |
---|---|---|---|---|
auto | automatic | x | ||
Beaufort | Beaufort | x | Beaufort | |
mps | metres per second | x | x | mps, m/s |
kph | kilometer per hour | x | x | kph, km/h |
mph | miles per hour | x | x | mps, m/h |
fps | feet per second | x | x | fps, f/s |
knot | knots | x | x | knots, knts, kts |
Name | Type | Default | Required | Description |
---|---|---|---|---|
from_value | number | x | Start speed of a speed range | |
color | string | x | Color CSS value |
For some value the theme variable --primary-text-color is used. This is needed if HA switches theme light/dark mode. CSS color values are allowed.
Name | Type | Default | Required | Description |
---|---|---|---|---|
rose_lines | string | rgb(160, 160, 160) | Circles, borders and the cross color | |
rose_direction_letters | string | --primary-text-color | Direction letters color | |
rose_percentages | string | --primary-text-color | Percentage legend color | |
bar_border | string | rgb(160, 160, 160) | Bar border color | |
bar_unit_name | string | --primary-text-color | Unit name color | |
bar_name | string | --primary-text-color | Entity name color | |
bar_unit_values | string | --primary-text-color | Unit value color | |
bar_percentages | string | black | Percentage color | |
_ |
colors:
rose_lines: 'rgb(0,255,0)'
rose_direction_letters: 'yellow'
rose_percentages: 'blue'
bar_border: 'hsl(200, 100%, 60%)'
bar_unit_name: 'purple'
bar_name: 'yellow'
bar_unit_values: 'blue'
bar_percentages: 'orange'
Uses speed_range_step and speed_range_max.
type: custom:windrose-card
title: Wind direction
data_period:
hours_to_show: 24
max_width: 400
windspeed_bar_full: true
wind_direction_entity:
entity: sensor.wind_direction
windspeed_entities:
- entity: sensor.wind_speed
name: Average
speed_range_beaufort: false
output_speed_unit: mps
speed_range_step: 5
speed_range_max: 25
Uses speed_ranges configuration, custom ranges and colors.
Always make sure there is a speedrange starting from 0, otherwise you can the this error:
Speed is not in a speedrange: 0.6 unit: mps
type: custom:windrose-card
title: Wind direction
data_period:
hours_to_show: 24
max_width: 400
windspeed_bar_full: true
wind_direction_entity:
entity: sensor.wind_direction
windspeed_entities:
- entity: sensor.wind_speed
name: Average
output_speed_unit: mps
speed_range_beaufort: false
speed_ranges:
- from_value: 0
color: rgb(0,255,0)
- from_value: 5
color: yellow
- from_value: 10
color: hsl(200, 100%, 60%)
- from_value: 20
color: orange
- from_value: 40
color: red
Make sure you have javascript_version: latest
in your configuration.yaml
under frontend:
.
Make sure you have the latest versions of windrose-card.js
.
If you have issues after updating the card, try clearing your browser cache.
If you have issues displaying the card in older browsers, try changing type: module
to type: js
at the card reference in ui-lovelace.yaml
.
This project is under the MIT license.
