Agnet

2 Layer Feed forward Neural Network.

A little about the gem and neural networks.

1. It takes a csv file with an array of 784 bits. These represent a 28 x 28 = 784 pixel image of a hand drawn number from 0-9.

2. This array is sent through a neural network, which applies a function to the array which results in a 10 digit output array.

3. The function converts this 784 digit array into a 10 digit array containing most likely classification of the hand drawn image.

• An image with a hand drawn 1, sent through this function would result in a output array like
  [0.01, 0.98, 0.01, 0.01, 0.01, 0.01, 0.01, 0.01, 0.01, 0.01]
• However, as a learning machine, the function does not start out correctly classifying the images. It must learn from a labeled training set of these images.

4. I have set the gem to load 1,000 labeled training samples into the function when you call the training method and pass in a csv.

5. These samples get sent through the function and the result is compared to the label. The error between the result and label is then used to make automatic adjustments to the function. These adjustments accumulate and the function's accuracy in classifying a sample correctly rises. It will top out in the 80-95 range.

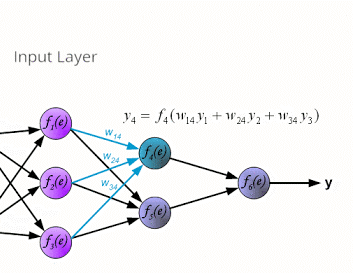

###Diagram of the Network

http://neuralnetworksanddeeplearning.com/chap1.html

###The algorithm behind the training function

Click image for .webm/pausable version

Neural nets are cool because the technology around them have been responsible for big advances in AI over the past few years. From advancement in computer vision to the recent developments in computer Go playing, neural nets have been breaking some cool new barriers. Since the rudimentary idea is runnable on consumer computers, it can be fun for anyone to experiment with.

Installation

Add this line to your application's Gemfile:

gem 'agnet'

And then execute:

$ bundle

Or install it yourself as:

$ gem install agnet

Usage

Initialize a network

  net = Agnet.new # default configuration, values detailed below in Readme

Or Configure and Initialize a custom network

  net = Agnet.new(bits: INT,
                  input_nodes: INT,
                  hidden_nodes: INT,
                  output_nodes: INT,
                  input_bias: FLOAT,
                  hidden_bias: FLOAT)
                  # Each hash is an optional parameter for configuration

Train your Network with a csv file

  net.train('path_to_your_csv_data_file')
  # defaults to training_size: 10000, testing_size:  10000 / 5

  net.train('path_to_your_csv_data_file',
            training_size: 60000,
            testing_size: 10000) # can set custom sizes for training and testing

Returns average of last 100 iterations during the training phase

(currently supports csv in format header label,pixel0,pixel1,...pixel783)

label from 0 to 9 (10 output nodes) 784 pixels (28x28 px image)

Classify a potion of data with a test of your trained net

  net.test # test all your samples loaded into the testing_data Array

  # if you only want to do a short test and test a chunk of the testing_data

  net.test(test_first: 10) # only tests the first 10 samples in the testing_data

Returns average correct through test Float between 0 and 1

(the net.train(file) method is set to grab 10000 rows for training data and 2000 rows for test data)

Classify an individual sample

  net.classify([784 pixel array with values from 0-255])

Returns output activation array [10 values from 0.0 to 1.0]

Training Scores

  net.training_score

Returns array with scores and iterations and training score log

[iteration,training_score_log,total_running_average,running_average_100,running_average_1000,running_average_5000]

Training Scores

  net.testing_score

Returns array with scores and iterations and testing score log

[iteration,testing_score_log,total_running_average,running_average_100,running_average_1000,running_average_5000]

Configuration

####Default Configuration

• input_nodes = 784
• hidden_nodes = 15
• output_nodes = 10
• hidden_function = 'sigmoid'
• output_function = 'soft_max'
• input_bias = 1.0
• hidden_bias = 1.0
• bits = 255.0
• learning_rate = 0.05
• training_size = 10000
• testing_size = 2000

####Optional Parameters

Initialize

• bits
• input_nodes
• hidden_nodes
• output_nodes
• input_bias
• hidden_bias
• learning_rate

Train

• training_size
• testing_size

Test

• test_first

Development

After checking out the repo, run bin/setup to install dependencies. Then, run rake spec to run the tests. You can also run bin/console for an interactive prompt that will allow you to experiment.

To install this gem onto your local machine, run bundle exec rake install. To release a new version, update the version number in version.rb, and then run bundle exec rake release, which will create a git tag for the version, push git commits and tags, and push the .gem file to rubygems.org.

Contributing

Bug reports and pull requests are welcome on GitHub at https://github.com/scsilver/agnet.

License

The gem is available as open source under the terms of the MIT License.

##Attribution

Michael Nielsen's articles on http://neuralnetworksanddeeplearning.com/ for network design reference and diagram
