Switch to new Cython-based RGB to CIE LCH_ab conversion for colorizing

[djhoese]

This is a replacement for #121 that adds a cython extension to trollimage. This does mean a lot more complexity to the building of trollimage, but opens up a lot of doors for more optimizations in the future.

I commented on #79 about the performance I was seeing from #121 and how it was worse. I'm happy to say that with this new version the say test that took 1.68s in the version in main now takes 479ms. I still have some optimizations though. This newest implementation is faster but only barely. I will try optimizing it further in another PR.

This work is heavily taken from the rio-color package: https://github.com/mapbox/rio-color

TODO:

• Decide/determine if the failing tests are just different numbers and not necessarily wrong

• Add wheel building and upload to CI

• Implement rgb2hcl in Cython (currently only have hcl2grb)

• Refactor, refactor, refactor

• Closes Add more accurate RGB <-> HCL conversion for colorize interpolation #121, closes hcl2rgb bottleneck in colorize methods #79 (remove if there is no corresponding issue, which should only be the case for minor changes)

• Tests added (for all bug fixes or enhancements)

• Tests passed (for all non-documentation changes)

• Passes git diff origin/master **/*py | flake8 --diff (remove if you did not edit any Python files)

• Fully documented (remove if this change should not be visible to users, e.g., if it is an internal clean-up, or if this is part of a larger project that will be documented later)

[djhoese]

For performance, this script:

from trollimage.colormap import Colormap
import numpy as np
cmap = Colormap(values=list(range(4)), colors=[(1.0, 1.0, 0.0), (0.0, 1.0, 1.0), (1.0, 1.0, 1.0), (0.0, 0.0, 0.0)])
data = np.random.random((3000, 3000))
colorized_image = cmap.colorize(data)

I run:

kernprof -l  profile_colorize.py
python -m line_profiler profile_colorize.py.lprof

And get:

Timer unit: 1e-06 s

Total time: 0.428572 s
File: /home/davidh/repos/git/trollimage/trollimage/colormap.py
Function: _interpolate_rgb_colors at line 92

Line #      Hits         Time  Per Hit   % Time  Line Contents
==============================================================
    92                                           @profile
    93                                           def _interpolate_rgb_colors(arr, colors, values):
    94         1          8.4      8.4      0.0      interp_xp_coords = np.array(values)
    95         1         35.8     35.8      0.0      interp_y_coords = rgb2hcl(colors)
    96         1          2.6      2.6      0.0      if values[0] > values[-1]:
    97                                                   # monotonically decreasing
    98                                                   interp_xp_coords = interp_xp_coords[::-1]
    99                                                   interp_y_coords = interp_y_coords[::-1]
   100                                               # handling NaN Hue values for interpolation
   101         1          0.7      0.7      0.0      new_hues = interp_y_coords[..., 0]
   102         1         35.5     35.5      0.0      if np.isnan(new_hues).all():
   103                                                   new_hues[..., :] = 0
   104                                               else:
   105         1          1.7      1.7      0.0          if np.isnan(new_hues[..., 0]):
   106                                                       new_hues[..., 0] = new_hues[~np.isnan(new_hues)][0]
   107         1          6.8      6.8      0.0          while np.isnan(new_hues).any():
   108                                                       new_hues[..., 1:] = np.where(np.isnan(new_hues[..., 1:]), new_hues[..., :-1], new_hues[..., 1:])
   109         1          1.4      1.4      0.0      interp_y_coords[..., 0] = new_hues
   110         1         12.4     12.4      0.0      interp_hcl = np.zeros(arr.shape + (3,), dtype=interp_y_coords.dtype)
   111         1     111445.3 111445.3     26.0      interp_hcl[..., 0] = np.interp(arr, interp_xp_coords, interp_y_coords[..., 0])
   112         1      54063.3  54063.3     12.6      interp_hcl[..., 1] = np.interp(arr, interp_xp_coords, interp_y_coords[..., 1])
   113         1      51841.0  51841.0     12.1      interp_hcl[..., 2] = np.interp(arr, interp_xp_coords, interp_y_coords[..., 2])
   114         1     211114.2 211114.2     49.3      new_rgb = hcl2rgb(interp_hcl)
   115         1          2.9      2.9      0.0      return [new_rgb[..., 0], new_rgb[..., 1], new_rgb[..., 2]]

So hcl2rgb is still the slowest individual call.

[djhoese]

So I started analyzing the failures of test_colorize_with_interpolation and tried to figure out which algorithm is more "right". So one of the results the test is supposed to product is 50%/50% between the first two colors of the colormap which are RGB (1.0, 1.0, 0.0) and (0.0, 1.0, 1.0). So yellow and cyan.

Here's what I get when I convert them to HCL:

In [3]: rgb2hcl_old(1.0, 1.0, 0.0)
Out[3]: (80.17623543714927, 0.00501416179526073, -0.14337082984424737)

In [4]: rgb2hcl_old(0.0, 1.0, 1.0)
Out[4]: (169.421806448465, 0.0034564219537122592, -0.1440018813512837)

In [5]: rgb2hcl(np.array([[1.0, 1.0, 0.0]]))
Out[5]: array([[1.04719755, 0.66666667, 0.5       ]])

In [6]: rgb2hcl(np.array([[0.0, 1.0, 1.0]]))
Out[6]: array([[3.14159265, 0.66666667, 0.5       ]])

What I see here is that the new algorithm is much more consistent. For example, why is C in the old version different for two "full" colors on the HCL colorspace. Why is luminance negative? Here's the paper for this PR's algorithm if you want the full algorithm:

https://web.archive.org/web/20190220074017/http://pdfs.semanticscholar.org/206c/a4c4bb4a5b6c7b614b8a8f4461c0c6b87710.pdf

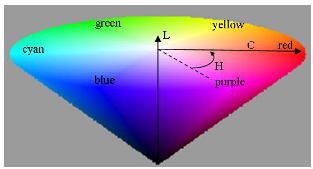

but here's the colorspace diagram:

Let me see if I can generate the two versions of the colormaps as colorbars...

[djhoese]

Old:

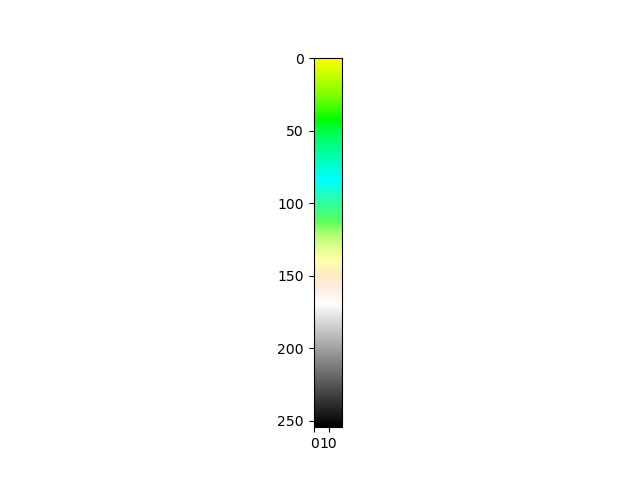

New:

Hm that cyan to white in the new one definitely doesn't look right.

Edit: ...but I'm pretty sure I fixed this in the pure-python version 😕

[djhoese]

Newest commit fixes this:

[djhoese]

I have another branch based on this one which completely reworks docs. I'd like to save that work for another PR.

[codecov]

Codecov Report

Merging #122 (2d97595) into main (0041bf5) will decrease coverage by 2.21%.
The diff coverage is 68.84%.

@@            Coverage Diff             @@
##             main     #122      +/-   ##
==========================================
- Coverage   93.37%   91.17%   -2.21%
==========================================
  Files          11       11
  Lines        3624     3852     +228
==========================================
+ Hits         3384     3512     +128
- Misses        240      340     +100

Flag	Coverage Δ
unittests	91.17% <68.84%> (-2.21%)	⬇️

Flags with carried forward coverage won't be shown. Click here to find out more.

Files Changed	Coverage Δ
trollimage/_colorspaces.pyx	63.89% <63.89%> (ø)
trollimage/colormap.py	100.00% <100.00%> (ø)
trollimage/colorspaces.py	100.00% <100.00%> (ø)
trollimage/tests/test_colormap.py	100.00% <100.00%> (ø)
trollimage/tests/test_image.py	100.00% <100.00%> (ø)

... and 1 file with indirect coverage changes

[djhoese]

So I had to update some other existing expected test results. The colormap used in that is brbg and I noticed a very small difference in the overall look.

Image with old colorize:

Image with new colorize:

Ugh, github is not rendering these nicely.

[djhoese]

From what I can tell lost coverage is due to no tests for colorspaces.py and now that the hcl functions from that module aren't being used there are no tests touching them.

[mraspaud]

Re YlGnBu, we should definitely add more intermediate colors, maybe these: https://colorbrewer2.org/#type=sequential&scheme=YlGnBu&n=9

[djhoese]

Yes, absolutely. Even just adding the middle color (which matches the other colors I think) made things better in this PR. I should note that the color produced by main is not accurate with color brewer.

Do you have any other thoughts on the other colormap changes? Are any of those unacceptable to you if this PR were to be adopted/merged?

[mraspaud]

LGTM. Thanks for putting in all the effort, it's just a bit disappointing it didn't improve the performance that much.

[mraspaud]

Tests are failing though...

[djhoese]

I'll spend an hour or so today seeing if I flip the logic around if it changes performance: I'm thinking if I do the for loop on the outer convert function and then passing every pixel in to the sub-functions that it should improve performance based on memory locality. I think for simplicity of code I'm going to pass pixel colors by reference instead of by value. Or at least the output. That way all functions can remain void for returns and I don't have to worry about creating stuff on the stack...I think. Do you have other ideas @mraspaud? The rio-color project did a struct that it assigned to and then returned. I'm not sure I want to go down that road but I don't have a strong reason either.

[djhoese]

Oh and the tests I will fix. They are just expected color comparison failures. I'll triple check that they aren't completely different colors before changing the expected values.

[mraspaud]

I'll spend an hour or so today seeing if I flip the logic around if it changes performance: I'm thinking if I do the for loop on the outer convert function and then passing every pixel in to the sub-functions that it should improve performance based on memory locality. I think for simplicity of code I'm going to pass pixel colors by reference instead of by value. Or at least the output. That way all functions can remain void for returns and I don't have to worry about creating stuff on the stack...I think. Do you have other ideas @mraspaud? The rio-color project did a struct that it assigned to and then returned. I'm not sure I want to go down that road but I don't have a strong reason either.

I have to admit I can't think of much right now....

• I see in some places that delta * delta is used, maybe having a delta_square constant could help a bit.
• There are some primitives in cuda for color conversions if we want to go that way. https://docs.nvidia.com/cuda/npp/group__image__color__model__conversion.html
• Otherwise I suppose you compared to the scikit images implementations? https://scikit-image.org/docs/stable/api/skimage.color.html#skimage.color.rgb2xyz

One more thing I saw now when looking at the code again: could we extract methods for the rgb to and from srgb conversions? I think it would make the code a bit nicer.

[mraspaud]

also opencv and corresponding python bindings could make things much faster if we want to test https://docs.opencv.org/3.4/de/d25/imgproc_color_conversions.html

[djhoese]

One more thing I saw now when looking at the code again: could we extract methods for the rgb to and from srgb conversions? I think it would make the code a bit nicer.

Which ones are you referring to?

[mraspaud]

this https://github.com/pytroll/trollimage/pull/122/files#diff-5f1ad72add694d03d94098c73ec8d5db5be7ef6ebb78648a606735d346769c0cR441-R453 and this https://github.com/pytroll/trollimage/pull/122/files#diff-5f1ad72add694d03d94098c73ec8d5db5be7ef6ebb78648a606735d346769c0cR299-R311

[djhoese]

Ah sure. I could make a little inline function for the individual component operation. I think I'll leave the simplified version as it is.

[djhoese]

Oh and no I haven't looked at those other libraries/tools because I was trying to avoid another dependency for only a small portion of what this library does and for such a small portion of what those libraries does (lots of extra functionality we aren't using).

[mraspaud]

Oh and no I haven't looked at those other libraries/tools because I was trying to avoid another dependency for only a small portion of what this library does and for such a small portion of what those libraries does (lots of extra functionality we aren't using).

true.

[djhoese]

As mentioned on slack, I will follow this PR up with an optimization PR and a PR to auto-generate the colormap images used in the docs.
