RND64

Fast multi-threaded file / stream junk data generator.

Linux and Windows

v.0.42

rnd64



Purpose
Usage
Downloads
Speed
Build



Purpose

Generate large files (over 4 GB, non-sparse) or large streams of binary / character data (200 GB+) at fast generation rates
(~8.5 GB/sec i3 desktop, ~4.6 GB/sec AWS microinstance using null byte stream output on Linux).

And the purpose of junk data?

Uses:

  • test files for development, network transfer etc,
  • system stress testing,
  • network speed tests.

A few Windows programs exist to create large files, and there are plenty of shell scripts using dd
Yet, I just needed something cross-platform with simple command-line options.

OS Support

  • Linux x64
  • Windows x64
  • Mac arm64

Usage

    rnd64 [option] <size> <file>
    rnd64 [option] <size> | <program>

Options

-a     (all)             binary bytes               includes control codes
-f     (fastest)         null character (0)         fastest generator
-r     (restrict)        characters 33 to 126       7-bit printable ASCII, safe for terminal output
-c     (crypto)          crypto-sourced bytes       Linux: /dev/urandom, Windows: CryptGenRandom (slow)

size   1K, 100M, 8G

Usage Examples

rnd64.exe or rnd64   (Windows)             display command-line options, as above
./rnd64              (Linux)

rnd64 -a 1k f.txt                          output 1 kB of random binary bytes to the file 'f.txt'
rnd64 -f 1k f.txt                          output 1 kB of null bytes to 'f.txt'

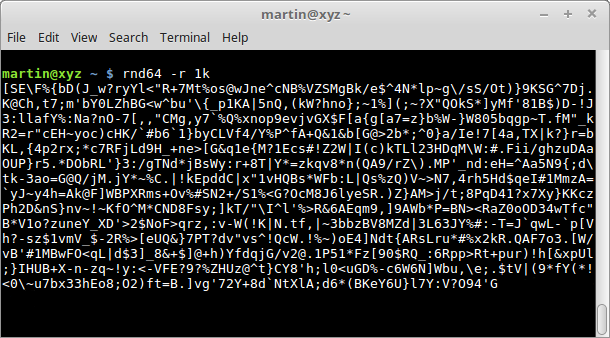

rnd64 -r 1k f.txt                          output the restricted range of 7-bit ASCII characters (33 to 126) to 'f.txt'
rnd64 -f 4g | pv > /dev/null               send 4 GB of null bytes to /dev/null with 'pv' displaying the throughput rate (Linux)
rnd64 -c 1k | ent                          pipe 1 kB of crypto bytes to the program 'ent'
rnd64 -a 1k | nc 192.168.1.20 80           pipe 1 kB of random bytes to 'netcat' to send to 192.168.1.20 on port 80
rnd64 -f 100g | pv > /dev/null             stress a system

nc -lk -p 3000 > /dev/null                 local network speed test (machine receiving, 192.168.1.20)
rnd64 -f 1g | pv | nc 192.168.1.20 3000    (machine sending)

Warning!

When using RND64 to generate large files (over 1 GB):

  • HDDs: consider the mechanical drive's age and performance,
  • SSDs: consider the potential write wear.

As well as warming the CPU, RND64 is quite capable of exhausting all drive space, finishing off failing HDDs, and reducing SSD lifetimes.

Downloads

Download from Releases
or directly:

Speed

Linux

RND64 is fast:

i3-4170 CPU 3.70GHz, 4.4 kernel:

    martin@xyz ~ $ rnd64 -f 4g | pv > /dev/null
    4GiB 0:00:00 [8.51GiB/s] [  <=>  ]

dd on same machine:

    martin@xyz ~ $ dd if=/dev/zero of=/dev/null bs=4G count=1 iflag=fullblock
    4294967296 bytes (4.3 GB, 4.0 GiB) copied, 0.959431 s, 4.5 GB/s

AWS Xeon E5-2670 2.50GHz, single core:

    [ec2-user@ip-172-31-7-109 ~]$ rnd64 -f 4g | pv > /dev/null
    4GiB 0:00:00 [4.61GiB/s] [     <=>     ]
  • Null byte stream generation rates -f are decent on Linux (~8 GB/sec on vanilla i3-4170), and the PCG random number generator (-a switch) is pretty fast (~4 GB/sec on same CPU) compared to most other RNGs.

... but not that fast:

  • File generation rates are slower and subject to a multitude of factors including: OS, OS activity, kernel version, kernel patches, HDD versus SSD drive, SSD interface and underlying SSD technology etc.

In the code, there are faster ways to create files than using C's fwrite(), which RND64 uses.

On Linux, write() can be up to 4 times faster than fwrite() on some machines (using a single-threaded version of RND64, with file descriptor unclosed). However, write() will only transfer a maximum of 2.1 GB, even on 64-bit systems [write(2)]. fwrite() does not have this limitation, and 4 GB+ output is what I sought.

Multi-threading has its own speed impacts, such as thread-waiting and data streams being combined.

... and output is 'slowing down':

... apparently on my i3-4170, courtesy of the Spectre/Meltdown kernel revisions.

Windows

With Windows lacking pv or equivalent, stream output speed is somewhat more difficult to assess.

One way is to provide the stats output on stderr.
This can be enabled by setting a flag in the source.

In rnd64.h, set the following macro value to 1:

    #define STREAM_STATS 0 /* Win stream stats */

Then compile the source as in the Build > Windows section.

    C:\rnd64.exe -f 4g > nul
    time: 9 s 938 ms
    MB/s: 412.15

Build

    git clone https://github.com/Tinram/RND64.git
    cd RND64/src

Linux

    make

or full process:

    make && make install && make clean

(Default compiler is GCC. For Clang, just rename the makefiles.)

Mac

Compiles on Mac with a few code changes:

  • Delete the line #include <sys/sysinfo.h> in rnd64.h
  • Auto-replace all instances of __linux to __APPLE__ in rnd64.h and rnd64.c
  • In rnd64.c, change iNumThreads = (unsigned int) get_nprocs(); to iNumThreads = (unsigned int) sysconf(_SC_NPROCESSORS_ONLN);
  • Rename makefile.clang to makefile and make

Manual compilation:

GCC:

    gcc rnd64.c -o rnd64 -lpthread -O3 -Wall -Wextra -Wuninitialized -Wunused -Werror -std=gnu99 -s

Clang:

    clang rnd64.c -o rnd64 -lpthread -O3 -Wall -Wextra -Wuninitialized -Wunused -Werror -s
Further Optimisation
-mtune=native -march=native                    current CPU
-flto                                          linker optimize

-march=core-avx2 -mtune=core-avx2              Intel Haswell
-march=skylake-avx512 -mtune=skylake-avx512    Intel Skylake

Windows

    gcc rnd64.c -o rnd64.exe -O3 -Wall -Wextra -Wuninitialized -Wunused -Werror -std=c99 -s

Other

The switches -a and -c are dangerous options when both a filename and pipe symbol are omitted. The wide range of output bytes, including control characters, are printed in the terminal, which can cause the terminal to lock or crash (especially on Windows).

On both Linux and Windows, it's more convenient for RND64 to be available from any directory location via the $PATH system variable.

Linux

    make install

Or move the RND64 executable to a location such as /usr/local/bin (location must be present in $PATH).

Windows

[Windows/Super key + Break] > Advanced tab > Environmental Variables button > click Path line > Edit button > Variable value – append at the end of existing line information: C:\directory\path\to\rnd64.exe;

Testing

  • Bfbtester
  • CppCheck
  • Fuzz
  • Valgrind
  • dev/null_detect.c

Credits

License

RND64 is released under the GPL v.3.
