A module for the Azure Maps Web SDK that provides a data source that clusters data points into cells of a grid area. |
|
|
A module for the Azure Maps Web SDK that provides a data source that clusters data points into cells of a grid area.
This operation is also known by many names such as tessellations, data binning, or hex bins.
A couple of the key features of this module:
- Generates pixel accurate cells for better visual appearance. Spatially accurate grids on a Web Mercator map are stretched and skewed which is less visually appelling.
- Uses an index based clustering method for high performance rather than a point in polygon method.
- Supports aggregate properties that calculates aggregate values from properties of all points within each grid cell, similar to the clustering functionality of a
DataSource. - Grid cell polygons clipped at anti-merdian to ensure no overlapping of cells.
- 6 different grid types:
| Name | Image | Description |
|---|---|---|
| Hexagon |  |
A haxagon grid where the top of the hexagon is flat. |
| Pointy hexagon |  |
A haxagon grid where the top of the hexagon is pointy. |
| Square |  |
A sguare grid. |
| Triangle |  |
A triangular grid. |
| Circle |  |
A square grid where cells are converted into circles. The circle does not cover the entire area the cell represents, but does include all points that would fall within the specified grid cell. |
| Hexagon circle |  |
A haxagon grid where cells are converted into circles. The circle does not cover the entire area the cell represents, but does include all points that would fall within the specified grid cell. |
Credit
A lot of the hexagon grid based algorithms came from this awesome site.
Triangle grid calculations are based on this blog post
Download the project and copy the azure-maps-gridded-data-source JavaScript file from the dist folder into your project.
See the documentation for more details on a specific feature or take a look at one of the samples below.

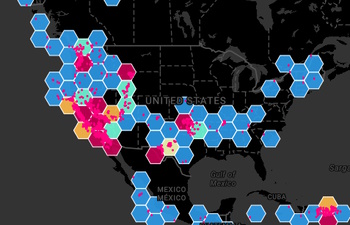

Show points of gridded data source
- Use of web workers for large data sets.
- Offloading calculations to WebGL.
- Option for geospatially accurate grids.
- Polygon mask to clip to.
