Description

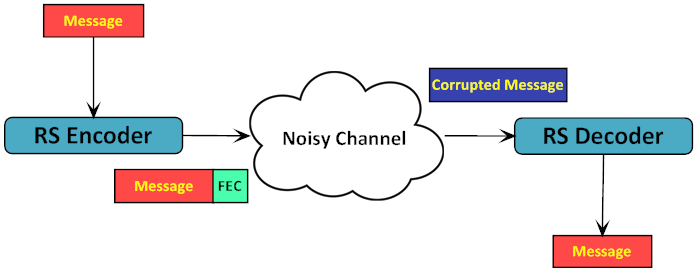

Schifra is a very robust, highly optimized and extremely configurable Reed-Solomon error correcting code library for software applications implemented in C++. Schifra supports standard, shortened and punctured Reed-Solomon codes. It also has support for stacked product codes and interleaving.

Schifra provides a concise, predictable and deterministic interface which lends itself to easy and seamless integration into the development of complex data communication projects requiring Reed- Solomon error correcting code capabilities.


Download

http://www.schifra.com


Features

  • Errors and Erasures
  • Supported Symbol Sizes - 2 to 32 bits
  • Variable Code Block Length
  • User defined primitive polynomial and finite field
  • Accurate and Validated Reed-Solomon Codecs - Complete combinatorial errors and erasures unit testing
  • Supported Architectures For Optimizations - x86-32, x86-64, PowerPC, m68k, XScale
  • Supported Reed-Solomon Codes - Intelsat 1-4, DVB(S and T), MPEG-2 TSP, VDL Mode 2-4, MIL-STD-188-165a, ITU-T G.709, CCSDS (Basis transform), CIRC, ETS 300-421, ETS 300-429, xDSL, PostBar, MaxiCode, DataMatrix and many more...
  • Shortened, Punctured and Concatenated Reed-Solomon Codes - WiMAX IEEE 802.16d standard
  • Product Codes
  • Standard and Algebraic Interleavers
  • Special Optimized Decoder - For cases of 2t = 2, 4, 6, 16 and 32
  • DO-178B Level A Certified Reed-Solomon Codec - RTCA DO-224A for VDL mode 2 and 3, RTCA DO-242A (ADS-B), Certified for installation on-board airborne systems
  • Reed-Solomon Based channel code for Erasure Channels

Compatible C++ Compilers

  • GNU Compiler Collection (3.1+)
  • Intel® C++ Compiler (8.x+)
  • Clang/LLVM (1.1+)
  • PGI C++ (10.x+)
  • Microsoft Visual Studio C++ Compiler (7.1+)
  • IBM XL C/C++ (9.x+)

C++ Encoder/Decoder Example

This example will demonstrate using C++ how to instantiate a Reed- Solomon encoder and decoder, add the full amount of possible errors, correct the errors, and output the various pieces of relevant information. The Reed-Solomon code's properties are as follows:

  • Symbol size: 8-bits
  • Codeword length: 255
  • Number of data symbols: 223
  • Number of FEC symbols: 32
  • Finite Field: GF(28)
  • Finite Field polynomial: 1x8 + 1x7 + 0x6 + 0x5 + 0x4 + 0x3 + 1x2 + 1x1 + 1x0
  • Generator polynomial roots: 32
  • Generator polynomial field index: 120th element (32 consecutive roots)

ScreenShot

#include <cstddef>
#include <iostream>
#include <string>

#include "schifra_galois_field.hpp"
#include "schifra_galois_field_polynomial.hpp"
#include "schifra_sequential_root_generator_polynomial_creator.hpp"
#include "schifra_reed_solomon_encoder.hpp"
#include "schifra_reed_solomon_decoder.hpp"
#include "schifra_reed_solomon_block.hpp"
#include "schifra_error_processes.hpp"

int main()
{
   /* Finite Field Parameters */
   const std::size_t field_descriptor                =   8;
   const std::size_t generator_polynomial_index      = 120;
   const std::size_t generator_polynomial_root_count =  32;

   /* Reed Solomon Code Parameters */
   const std::size_t code_length = 255;
   const std::size_t fec_length  =  32;
   const std::size_t data_length = code_length - fec_length;

   /* Instantiate Finite Field and Generator Polynomials */
   const schifra::galois::field field(field_descriptor,
                                      schifra::galois::primitive_polynomial_size06,
                                      schifra::galois::primitive_polynomial06);

   schifra::galois::field_polynomial generator_polynomial(field);

   if (
        !schifra::make_sequential_root_generator_polynomial(
                     field,
                     generator_polynomial_index,
                     generator_polynomial_root_count,
                     generator_polynomial)
      )
   {
      std::cout << "Error - Failed to create sequential root generator!" << std::endl;
      return 1;
   }

   /* Instantiate Encoder and Decoder (Codec) */
   typedef schifra::reed_solomon::encoder<code_length,fec_length,data_length> encoder_t;
   typedef schifra::reed_solomon::decoder<code_length,fec_length,data_length> decoder_t;

   const encoder_t encoder(field,generator_polynomial);
   const decoder_t decoder(field,generator_polynomial_index);

   std::string message = "An expert is someone who knows more and more about less and "
                         "less until they know absolutely everything about nothing";

   /* Pad message with nulls up until the code-word length */
   message.resize(code_length,0x00);

   /* Instantiate RS Block For Codec */
   schifra::reed_solomon::block<code_length,fec_length> block;

   /* Transform message into Reed-Solomon encoded codeword */
   if (!encoder.encode(message,block))
   {
      std::cout << "Error - Critical decoding failure! "
                << "Msg: " << block.error_as_string()  << std::endl;
      return 1;
   }

   /* Add errors at every 3rd location starting at position zero */
   schifra::corrupt_message_all_errors00(block, 0, 3);

   if (!decoder.decode(block))
   {
      std::cout << "Error - Critical decoding failure!" << std::endl;
      return 1;
   }
   else if (!schifra::is_block_equivelent(block,message))
   {
      std::cout << "Error - Error correction failed!" << std::endl;
      return 1;
   }

   block.data_to_string(message);

   return 0;
}

Performance

The following table is a listing of results obtained from running the schifra_reed_solomon_speed_evaluation benchmark. The benchmark measures the decoding rate of codewords in two modalities: "All Errors" and "All Erasures".

Reed Solomon Codec All Errors Decoding Rate (Mbps) All Erasures Decoding Rate (Mbps)
RS(255,253,002) 1669.275 1542.483
RS(255,251,004) 1103.620 1019.695
RS(255,249,006) 843.524 781.815
RS(255,247,008) 670.612 612.418
RS(255,245,010) 552.918 513.101
RS(255,243,012) 461.485 430.707
RS(255,241,014) 399.025 378.728
RS(255,239,016) 355.399 338.250
RS(255,237,018) 315.294 304.094
RS(255,235,020) 282.269 273.023
RS(255,223,032) 173.067 162.276
RS(255,207,048) 106.055 102.039
RS(255,191,064) 75.213 72.671
RS(255,175,080) 56.374 53.210
RS(255,159,096) 41.354 41.009
RS(255,127,128) 25.445 24.823

Note: The above results were obtained by compiling the benchmark with GCC 7.2 with O3, LTO, PGO and native architecture target compiler settings, and executed upon an Intel Xeon E5-2687W 3GHz CPU, 64GB RAM, Ubuntu 16.10 with kernel 4.13 system.
