luma.lcd

HD44780, PCD8544, ST7735, ST7789, ST7567, HT1621, UC1701X, ILI9341, ILI9486, ILI9488 Display Drivers

https://github.com/rm-hull/luma.lcd/workflows/luma.lcd/badge.svg?branch=master https://coveralls.io/repos/github/rm-hull/luma.lcd/badge.svg?branch=master Documentation Status https://img.shields.io/pypi/dm/luma.lcd

luma.lcd provides a Python 3 interface to small LCD displays connected to Raspberry Pi and other Linux-based single-board computers (SBC). It provides a Pillow-compatible drawing canvas, and other functionality to support:

  • scrolling/panning capability,
  • terminal-style printing,
  • state management,
  • color/greyscale (where supported),
  • dithering to monochrome

It currently supports devices using the HD44780, PCD8544, ST7735, ST7567, ST7789, ILI9341, ILI9486, ILI9488 and UC1701X controllers.

All modules can be picked up on ebay with a breakout board for a few pounds.

https://raw.github.com/rm-hull/luma.lcd/master/doc/images/hd44780_20x4.jpg

https://raw.github.com/rm-hull/luma.lcd/master/doc/images/pcd8544.png

https://raw.github.com/rm-hull/luma.lcd/master/doc/images/st7735.jpg

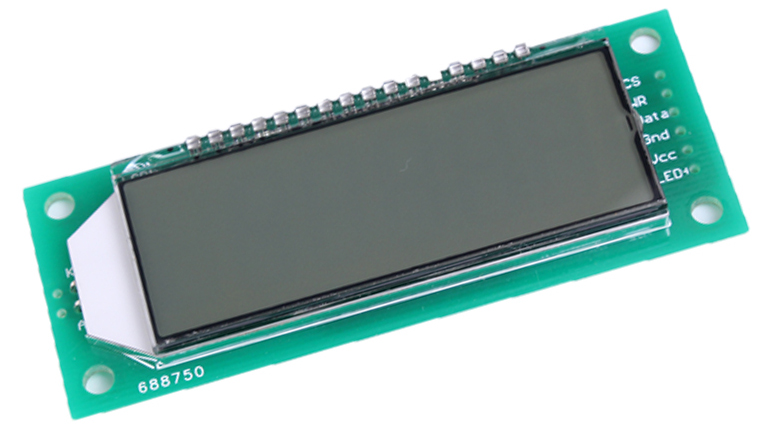

https://raw.github.com/rm-hull/luma.lcd/master/doc/images/ht1621.jpg

https://raw.github.com/rm-hull/luma.lcd/master/doc/images/uc1701x.png

https://raw.github.com/rm-hull/luma.lcd/master/doc/images/ili9341.jpg

Documentation

Full documentation with installation instructions and examples can be found on https://luma-lcd.readthedocs.io.

Upgrade

Version 2.0.0 was released on 2 June 2019: this came with the removal of the luma.lcd.aux.backlight class. The equivalent functionality has now been subsumed into the device classes that have a backlight capability.
