Clicking the toggle-button should focus the input

[mas4ivv]

Description

When clicking on the toggle-button, the focused component does not change.

Expected outcome

The focus should move to the combobox (preferrable the input part).

Actual outcome

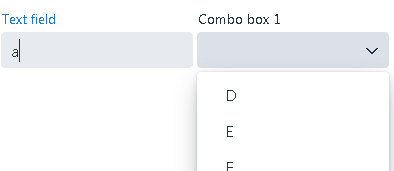

If e.g. a textfield is focused, clicking on the toggle-button opens the popup. When the user now types to filter the list, the input is added to the textfield instead of the combobox.

Steps to reproduce

1. Put a vaadin-text-field element in the page.
2. Put a vaadin-combo-box element in the page.
3. Open the page in a web browser.
4. Focus the text-field
5. Click on the toggle-button of the combo-box
6. Enter text on keyboard

Browsers Affected

Tried with Firefox and Chrome, both showing the reported behaviour.

[web-padawan]

@mas4ivv can you reproduce the issue with this demo?
https://jazzy-pedestrian.glitch.me

The code is here (press "Remix Project" in the menu to make changes):
https://glitch.com/edit/#!/jazzy-pedestrian?path=index.html

Currently, when doing steps above, I'm able to focus combo-box by clicking toggle button.
Are you sure you are using the latest version of the component?

[mas4ivv]

I can reproduce the problem with the link you provided using Firefox 60.6.1esr (the only browser I can currently use). When I focus the textfield and click on the toggle button the popup opens, but the focus stays inside the textfield. All input made by keyboard goes into the textfield.

As a workaround I included a click listener in the combobox:
this.$.toggleButton.addEventListener("click", function (e) {
that.$.input.focusElement.select();
});

[Haprog]

I just tested this on Firefox 60.7.0esr (64-bit) on macOS and can't reproduce it. @mas4ivv can you get your Firefox ESR version upgraded to this latest 60.7.0esr and try again?

[Haprog]

I also downloaded the specific version Firefox 60.6.1esr (from here) and can't reproduce the issue even with that one (at least on macOS).

[Haprog]

@mas4ivv Do you have any add-ons enabled in Firefox? If so, could you try disabling all add-ons to check they don't cause the issue? Or maybe try (Private mode).

[Haprog]

I also installed Firefox 60.6.1esr on a Windows 10 (64bit) in a virtual machine and there it also seems to work (can't reproduce issue).

[mas4ivv]

At the moment I can only use the Firefox version I mentioned (will try at home with a newer Firefox), but I tried the same on my mobile with Chrome and get the same result. Did you click exactly on the toggle button? When clicking anywhere else on the combobox the behavior is as expected.

[Haprog]

Yes I made sure to click on the toggle button icon directly, but also tested clicking elsewhere.

Now that you mentioned mobile Chrome, I also just tested with Chrome on Android and there I can see the problem.

[Haprog]

@mas4ivv Which OS are you using on desktop (Win, Linux, macOS)?

[mas4ivv]

Firefox on Windows 7, Chrome on Android.

[Haprog]

@mas4ivv Are you using a touch screen on the Windows 7?

I just noticed that I can reproduce this easily on both latest Chrome and latest Firefox even on macOS if I open dev tools and enable mobile device simulation by selecting a specific device in the responsive design mode.

I guess the problem is probably related to touch events. At least now it is easier to debug after this realization.

[Haprog]

Also reproducible in Chrome without responsive mode (device toolbar) by selecting "Touch: Force enabled" from the "Sensors" tab in dev tools.

[Haprog]

Actually it looks like this is a feature that has specifically been implemented to prevent opening the virtual keyboard on touch devices (when clicking on the toggle button) unless the user explicitly clicks/taps on the input part.

https://github.com/vaadin/vaadin-combo-box/blob/master/src/vaadin-combo-box-mixin.html#L331

// For touch devices, we don't want to popup virtual keyboard on touch devices unless input
// is explicitly focused by the user.
if (!this.$.overlay.touchDevice) { //...

This part only focuses the input (when clicking the toggle button) if it's not a touch enabled device.

We probably need to rethink how this should work.

It would help if it is somehow possible to detect that the device is touch enabled but does not have a virtual keyboard (like on mobile devices by default). Or if we can detect that it's not a "mobile device" but has touch enabled. I'm not sure what would be the best logic for this to work good in most cases. This can get a bit complex considering laptops with touchscreens or other "hybrid" devices.

One possibility would be to check for viewport dimensions and if the viewport is big enough (assuming it's not a mobile phone where a virtual keyboard takes a considerable amount of space on the screen) then it might be ok to make it focus the input even on a touch device.

Or alternatively we could just make it check if the parent root of the combo box has some other element focused instead of the combo-box and at least blur that element (if not focusing the input of the combo-box). This might be good enough. At least it seems weird to leave focus on some external element so this would solve that problem.

@mas4ivv Considering the above, would it be good enough for you if in this case (on touch devices) we would just focus the combo-box in some way without focusing the input part, or just making sure to unfocus any external element (text field in this case) that might have had focus when clicking the toggle button?

[mas4ivv]

@Haprog: Yes, both suggestions would be fine for us. And seeing your code I understand that my next task is to find out why our desktops think they are touch devices...

[Haprog]

I at least tested this once on fresh VM with Win 7 (32bit) running the same version of Firefox 60 ESR but it did not reproduce there so at least by default even that OS + browser combination should not have touch enabled. Maybe something in your OS or browser settings. If you have modified FF settings there maybe some part that forces touch events. But I guess it could also be caused by some settings in Windows.

[Haprog]

@mas4ivv A fix for this was implemented so that on touch enabled devices it will unfocus the previously focused element (if there is one) when clicking the toggle button.

The fix is now released with vaadin-combo-box v5.0.4.

WebJar for this version is being published and should be available in Maven Central soon (for Java API).

Yes, both suggestions would be fine for us. And seeing your code I understand that my next task is to find out why our desktops think they are touch devices...

Btw I think I read somewhere that on Windows some other software could install a virtual touch device, which would make the browsers think that the computer is touch enabled. This is what might be happening if you are running some special software that needs a virtual touch device for any reason.
