Multi-camera YOLOv5 on the Zynq UltraScale+ and Hailo-8 AI accelerator

Description

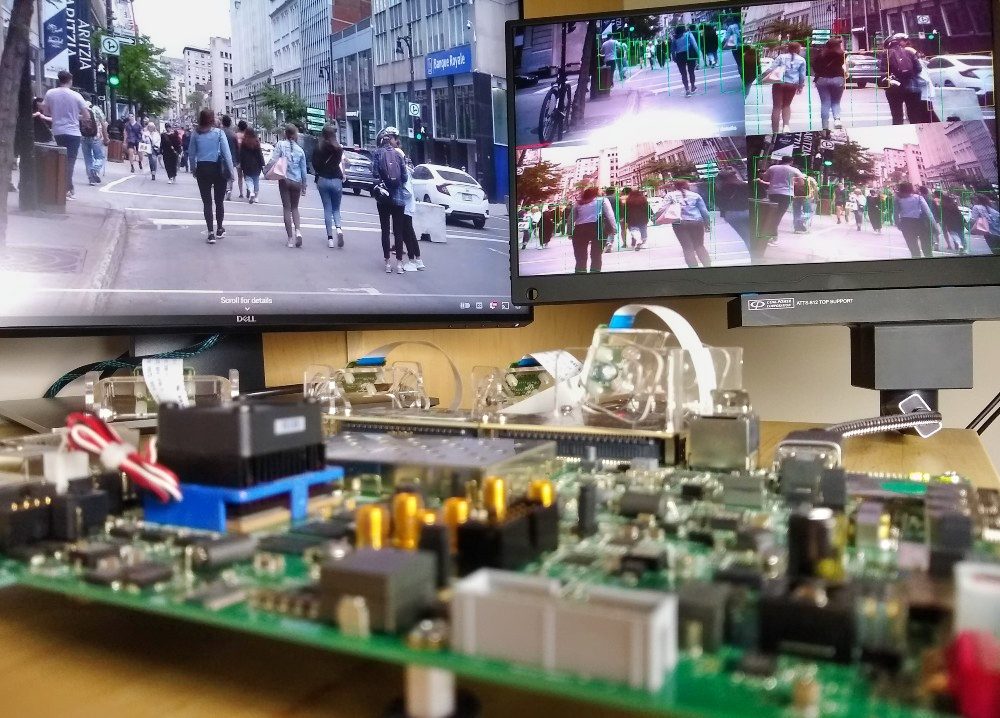

This project demonstrates the combined power of the Zynq UltraScale+ and the Hailo-8 AI accelerator when used in multi-camera vision applications. The repo contains designs for several Zynq UltraScale+ development boards and connects to 4x Raspberry Pi cameras via the Opsero RPi Camera FMC. The Hailo-8 AI accelerator connects to the development board via the FPGA Drive FMC Gen4 or the M.2 M-key Stack FMC depending on the target design (see list of target designs below).

A detailed description of this design and how to use it was written up in this blog post: Multi-camera YOLOv5 on Zynq UltraScale+ with Hailo-8 AI Acceleration

Important links:

• The user guide for these reference designs
• The RPi Camera FMC datasheet
• The FPGA Drive FMC Gen4 datasheet (for the zcu106 target design only)
• The M.2 M-key Stack FMC datasheet
• To report an issue
• For technical support: Contact Opsero

Requirements

This project is designed for version 2022.1 of the Xilinx tools (Vivado/Vitis/PetaLinux). If you are using an older version of the Xilinx tools, then refer to the release tags to find the version of this repository that matches your version of the tools.

In order to test this design on hardware, you will need the following:

• Vivado 2022.1
• Vitis 2022.1
• PetaLinux Tools 2022.1
• 1x Hailo-8 M.2 AI Acceleration Module
• 4x Raspberry Pi Camera Module 2
• 1x RPi Camera FMC
• 1x FPGA Drive FMC Gen4 (for zcu106 target design)
• 1x M.2 M-key Stack FMC (for all other designs)
• 1x DisplayPort monitor that supports 2560 x 1440 resolution video
• Alternatively, 1x HDMI monitor that supports 2560 x 1440 resolution and DP-to-HDMI adapter
• 1x of the supported target boards listed below

Target designs

Note that there are two target designs for the ZCU106 board: zcu106 and zcu106_hpc0, and the differences are explained in the table below. All target designs except zcu106 require the M.2 M-key Stack FMC as the M.2 adapter for the Hailo-8, with the RPi Camera FMC stacked on top of it.

Target board	Target design	FMC slots used	Cameras	M.2 adapter for Hailo	M.2 active slots
ZCU104	zcu104	LPC	4	M.2 M-key Stack FMC	1
ZCU106	zcu106	HPC0+HPC1 (note 1)	4	FPGA Drive FMC Gen4	1
ZCU106	zcu106_hpc0	HPC0	4	M.2 M-key Stack FMC	2 (note 3)
PYNQ-ZU	pynqzu	LPC	2 (note 2)	M.2 M-key Stack FMC	1
Genesys-ZU	genesyszu	LPC	2 (note 2)	M.2 M-key Stack FMC	1
UltraZed EV carrier	uzev	HPC	4	M.2 M-key Stack FMC	2 (note 3)

Notes:

1. The zcu106 target design uses the FPGA Drive FMC Gen4 as the M.2 adapter for the Hailo-8. In that design, the FPGA Drive FMC Gen4 connects to HPC1 while the RPi Camera FMC connects to the HPC0 connector.
2. The pynqzu and genesyszu target designs have video pipelines for only 2 cameras (CAM1 and CAM2 as labelled on the RPi Camera FMC). This is due to the resource limitations of the devices on these boards.
3. The zcu106_hpc0 and uzev target designs have support for 2x M.2 modules. To use the Hailo demo scripts, at least one of these modules must be the Hailo-8 M.2 AI Acceleration Module. The second slot can be used for a second Hailo module, or an NVMe SSD for storage.

Build instructions

This repo contains submodules. To clone this repo, run:

git clone --recursive https://github.com/fpgadeveloper/zynqmp-hailo-ai.git

Source Vivado and PetaLinux tools:

source <path-to-petalinux>/2022.1/settings.sh
source <path-to-vivado>/2022.1/settings64.sh

Build all (Vivado project, accelerator kernel and PetaLinux):

cd zynqmp-hailo-ai/PetaLinux
make petalinux TARGET=uzev

Contribute

We strongly encourage community contribution to these projects. Please make a pull request if you would like to share your work:

• if you've spotted and fixed any issues
• if you've added designs for other target platforms
• if you've added software support for other cameras

Thank you to everyone who supports us!

The TODO list

• Test all M.2 M-key Stack FMC based designs on hardware
• Add 2x camera script for PYNQ-ZU board
• Add some demo scripts for VVAS and VCU
