Plugins

panel

安装

npm install butterfly-dag

用法

注册

import panelPlugins from 'butterfly-dag/plugins/panel/dist';
import 'butterfly-dag/plugins/panel/dist/index.css';

import pika from '../img/pikatest.jpg';

panelPlugins.register(
  [
    {
      root: document.getElementById('dnd'),
      canvas: this.canvas,
      type: 'uml',
      width: 40,
      height: 40,
      data: [
        {
          id: 'user-1',
          type: 'png',
          content: pika,
          with: 40,
          height: 40,
        },
        {
          id: 'user-baidu-1',
          type: 'png',
          content: 'https://www.baidu.com/img/PCtm_d9c8750bed0b3c7d089fa7d55720d6cf.png',
          with: 100,
          height: 40,
        }
      ]
    },
  ],() => {
    console.log('finish')
  }
);

初始化

import panelPlugins from 'butterfly-dag/plugins/panel/dist';
import {Canvas} from 'butterfly-dag';

import 'butterfly-dag/plugins/panel/dist/index.css';

import pika from '../img/pikatest.jpg';

let PanelNode = panelPlugins.PanelNode;

let root = document.getElementById('dag-canvas');

this.canvas = new BaseCanvas({
  root: root,
  disLinkable: true, // 可删除连线
  linkable: true,    // 可连线
  draggable: true,   // 可拖动
  zoomable: true,    // 可放大
  moveable: true,    // 可平移
});

panelPlugins.register(
  [
    {
      root: document.getElementById('dnd'),
      canvas: this.canvas,
      type: 'uml',
      width: 40,
      height: 40,
      data: [
        {
          id: 'user-1',
          type: 'png',
          content: pika,
          with: 40,
          height: 40,
        },
        {
          id: 'user-baidu-1',
          type: 'png',
          content: 'https://www.baidu.com/img/PCtm_d9c8750bed0b3c7d089fa7d55720d6cf.png',
          with: 100,
          height: 40,
        }
      ]
    },
  ],() => {
    console.log('finish')
  }
);

this.canvas.draw(
  {
    nodes: [{
      id: '1',
      top: 10,
      left: 100,
      width: 40,
      height: 40,
      rotate: 45,
      content: 'System-Uml-ClassDiagram-1',
      Class: PanelNode,
    },{
      id: '2',
      top: 10,
      left: 20,
      width: 40,
      height: 40,
      rotate: 30,
      content: 'user-baidu-1',
      Class: PanelNode,
    }]
  },
  () => {
    console.log(this.canvas.getDataMap());
});

// 使用内置UML图(内置`UML`图片`ID`)

this.canvas.draw(
  {
    nodes: [{
      id: '1',
      top: 10,
      left: 20,
      content: 'System-Uml-ClassDiagram-1',
      Class: PanelNode,
    }]
  }
);

// 方式一(推荐): 使用自定义
// 此处的初始化可以使用前面注册过的id作为content传入

panelPlugins.register(
  [
    {
      root: document.getElementById('dnd'),
      canvas: this.canvas,
      type: 'uml',
      width: 40,
      height: 40,
      data: [
        {
          id: 'user-1',
          type: 'png',
          content: pika,
          with: 40,
          height: 40,
        }
      ]
    },
  ],() => {
    console.log('finish')
  }
);

this.canvas.draw(
  {
    nodes: [{
      id: '1',
      top: 10,
      left: 20,
      content: 'user-1',
      Class: PanelNode,
    }]
  }
);

// 方式二: 使用自定义

this.canvas.draw(
  {
    nodes: [{
      id: '1',
      top: 10,
      left: 20,
      content: 'https://www.baidu.com/img/PCtm_d9c8750bed0b3c7d089fa7d55720d6cf.png',
      Class: PanelNode,
    }]
  }
);

// 方式三: 使用自定义

import pika from '../img/pikatest.jpg';

this.canvas.draw(
  {
    nodes: [{
      id: '1',
      top: 10,
      left: 20,
      content: pika,
      Class: PanelNode,
    }]
  }
);

内置模块

内置UML模块

文件名即为id：如： System-Uml-ClassDiagram-1

内置常规模块

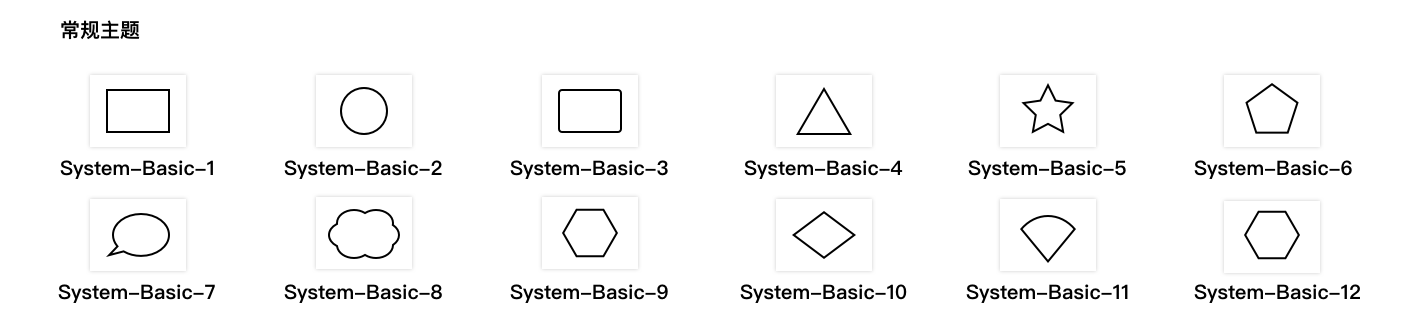

文件名即为id：如： System-Basic-1

属性

root <dom> (必填)

  panel渲染dom的容器

canvas <Object> (必填)

  butterfly-dag的canvas实例

type <String> (选填)

  内置的panel库类型: uml or basic

width <Number> (选填)

  在root容器中渲染元素的宽度,默认36

height <Number> (选填)

  在root容器中渲染元素的高度,默认36

data <Array> (选填)

  自定义的panel,会追加在最后:自定义panel配置主要为：

• id <String> (必填) 用于添加进画布是的id前缀、唯一标识（注意: 不要和系统自带的重复）

• content <String> (必填) PanelNode中填充的图片(<img src="content" /> | 内置主题图片ID)

• type <String> (选填) 后续内容，用于标示图片的类型

• width <Number> (选填) 在root中渲染的自定义panel的宽度,默认36

• height <Number> (选填) 在root中渲染的自定义panel的高度,默认36

API

panelPlugins.register(data, callback)

作用：注册panel到root中

参数

• {Array} data 里面包含panel数据
• {function} calllback（可选） 注册完毕后的回调

// 使用系统内置UML主题
panelPlugins.register(
  [
    {
      root: document.getElementById('dnd'),
      canvas: this.canvas,
      type: 'uml',
    }
  ],()=>{
    console.log('finish');
  }
);

// 自定义
panelPlugins.register(
  [
    {
      root: document.getElementById('dnd'),
      canvas: this.canvas,
      type: 'uml',
      data: [
        {
          id: 'user-1',
          type: 'png',
          content: pika,
          with: 40,
          height: 40,
        }
      ]
    }
  ]
);

// 多组

panelPlugins.register(
  [
    {
      root: document.getElementById('dnd'),
      canvas: this.canvas,
      type: 'uml',
    },
    {
      root: document.getElementById('dnd1'),
      canvas: this.canvas,
      type: 'uml',
      data: [
        {
          id: 'user-1',
          type: 'png',
          content: pika,
          with: 40,
          height: 40,
        }
      ]
    }
  ]
);

节点（PanelNode）

• 继承自butterfly-dag的Node

属性

actived <Boolean>

   控制是否激活状态（激活显示node的控制点）

rotatorDeg <Number>

   当前节点的旋转角度

API

panelNode.focus ()

作用： 节点变为选中状态

panelNode.focus();

panelNode.unFocus ()

作用： 节点变为未选中状态

panelNode.unFocus();

panelNode.rotate (angle)

作用： 节点旋转

参数

• angle <Number> 设置节点的旋转角度（顺时针）

panelNode.rotate(45);
